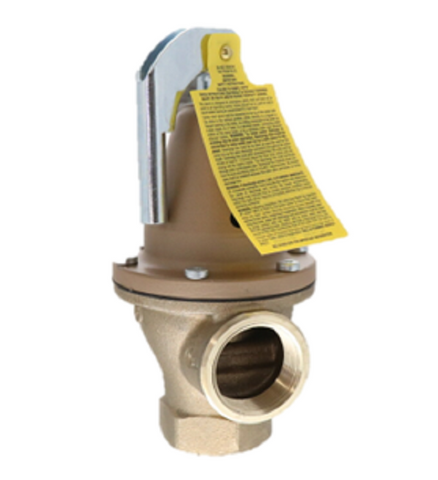

Watts 0121549 Valve

The Watts 0121549, also identified by model LF174A-1 1/2-150, is a high-capacity boiler pressure relief valve designed for heavy-duty commercial and industrial hot water heating applications. This ASME rated relief valve features a lead-free copper silicon alloy body and 1.5-inch NPT threaded female connections, engineered to handle a steam discharge capacity of up to 7,630,000 BTU/hr. As a veteran technician knows, the Watts LF174A series is specifically built to protect against excessive pressure buildup in large-scale hydronic systems. The lead-free relief valve utilizes a non-metallic disc-to-metal seating and a stainless steel spring to prevent sticking and freezing, even in corrosive water conditions. With a 150 PSI set point, this commercial pressure relief valve ensures system integrity by discharging excess pressure safely, far exceeding the requirements for standard domestic units. Its unique above-drain seat design prevents sediment from fouling the seal, ensuring reliable mechanical alignment during emergency relief cycles.

• High BTU Rating: Rated at 7,630,000 BTU/hr for protection of large commercial boilers and heat exchangers.
• Lead-Free Construction: Complies with all lead-free installation requirements for potable water and heating systems.
• Resilient Seating: Non-mechanical seat-to-disc alignment prevents internal components from freezing or sticking.
• Corrosion Resistance: Durable copper silicon alloy body and stainless steel spring endure harsh hydronic environments.
• Easy Maintenance: Equipped with a standard test lever for manual operation and inspection of waterways.

Is the Watts 0121549 compatible with older 174A models?
Yes, the 0121549 is the direct lead-free replacement for the legacy 174A-1 1/2-150. It maintains the same 1.5-inch NPT footprint and 150 PSI rating, ensuring easy swap-outs during mechanical room upgrades.

Can this valve be used as an operating control?
No, this unit is strictly an emergency safety relief device. Using a relief valve like the LF174A for regular pressure regulation will cause premature seat wear and system failure.

What is the maximum temperature rating?
The LF174A series is designed to handle temperatures up to 250°F (121°C), making it suitable for high-temperature hot water heating supply systems.
