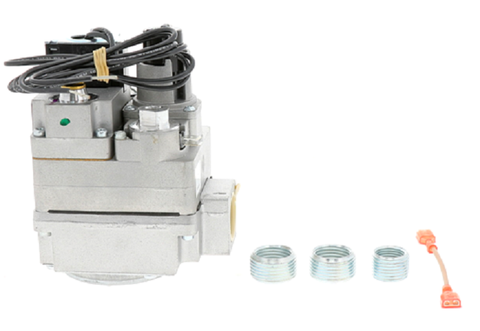

White-Rodgers 36C03A-410 Gas Valve

The White-Rodgers 36C03A-410 is a high-capacity, 120V combination gas valve engineered for precision fuel control in commercial and residential heating systems. Designed as a versatile 3/4 x 3/4 NPT gas valve, this unit features a straight-through flow pattern and handles capacities up to 280,000 BTU/HR, making it an essential component for high-demand applications. This model is the direct replacement for 36C03A-310, providing a seamless retrofit for technicians servicing older standing pilot systems. It operates with a 120V solenoid gas valve actuator and includes an integrated LP conversion kit, allowing for immediate field adaptation between Natural Gas and Liquid Propane. The White-Rodgers 36C series is recognized for its robust construction, utilizing a 3-position main switch (Off-Pilot-On) and a regulated diaphragm for consistent manifold pressure. Whether you are performing a furnace gas valve replacement or upgrading a commercial boiler, the 36C03A-410 delivers the reliability required for standing pilot ignition systems.

• Direct Retrofit Compatibility: Engineered as the specific 120V successor to the 36C03A-310, ensuring port-to-port alignment and wiring consistency.
• High-Capacity Throughput: Rated for 280,000 BTU/HR, suitable for larger atmospheric furnaces and commercial water heaters.
• Multi-Fuel Versatility: Ships configured for Natural Gas but includes all necessary components for a White-Rodgers LP conversion.
• Straight-Through Piping: Standard 3/4" NPT inlet and outlet connections simplify installation in tight mechanical closets.
• Integrated Safety Pilot: Features a dedicated pilot gas filter and adjustable pilot flow to ensure stable ignition cycles.

Can this valve be used on 24V circuits?
No, the 36C03A-410 is strictly a 120V gas valve. Applying 24V will fail to engage the operator, while higher voltages will damage the solenoid coil.

Does this unit support intermittent ignition or DSI?
This specific model is designed for standing pilot systems. It is not a direct substitute for HSI or DSI valves requiring a redundant solenoid configuration.

What is the pressure rating for this valve?
The unit is rated for an inlet pressure of up to 14" W.C. (1/2 PSI). The internal regulator is factory set but can be adjusted to meet specific manifold requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
