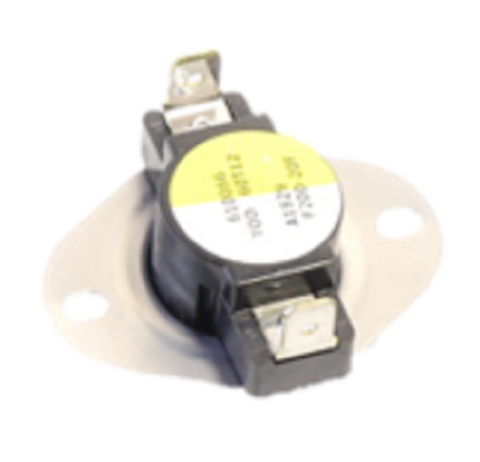

Copeland Comfort Control (White Rodgers) 3F01-200 Switch

The Copeland Comfort Control (White Rodgers) 3F01-200 is an industrial-grade snap disc fan switch designed for reliable airstream mounting in HVACR systems. This fixed temperature control features a close on rise switch action, specifically calibrated with a 200-degree F cut-in and a 180-degree F cut-out temperature. Engineered as a Therm-O-Disc style 60T12 (type 610066), this SPST fan control utilizes an aluminum disc cup for rapid thermal response and a 3/4-inch flanged mounting configuration that mirrors standard industry footprints for seamless field replacement. The automatic reset functionality ensures the system returns to its primary state once temperatures drop below the 20-degree differential, maintaining consistent blower operation without manual intervention. Built to handle inductive loads of 5.8A at 120VAC and resistive ratings up to 25A, this component is a staple for contractors requiring a robust White Rodgers 3F01-200 solution for high-limit or blower cycling applications.

• Standardized Fit: Mounting holes are spaced to match existing 3/4-inch snap disc footprints, reducing installation time for service technicians.
• High Load Capacity: Rated for up to 25A resistive at 120/240VAC, making it suitable for a wide range of furnace and appliance blower motors.
• Quick Integration: Features 1/4-inch quick-connect terminals and includes tab-to-screw adapters for flexible electrical termination in the field.
• Precision Thermal Control: The snap-action bimetal disc provides positive, high-speed contact separation to minimize arcing and electrical noise.

• What is the difference between an "L" and "F" prefix in White Rodgers controls? In this series, "F" stands for Fan (Close on Rise), while "L" stands for Limit (Open on Rise). The last three digits (200) signify the cut-in temperature for fan controls.
• Can this switch be used in a vertical or horizontal orientation? Yes, the 3F01-200 is designed for airstream mounting and functions reliably in any orientation within the plenum or ductwork.
• Is an adapter plate required for installation? While this unit fits standard 3/4-inch holes, some legacy applications may require an F6-1798 adapter plate if the existing cutout is larger.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
