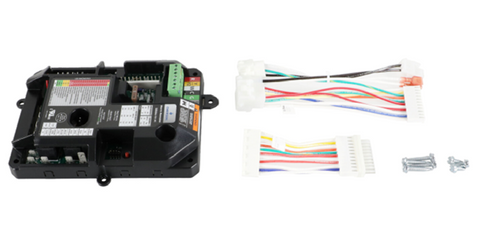

Copeland Comfort Control (White Rodgers) 50M56U-751 Module Replacement Kit

24V MODULE REPLACEMENT KIT

50M56U-751 is the direct replacement for 1186024

Copeland Comfort Control White-Rodgers 50M56U-751 Universal Integrated Furnace Control Replacement Kit – 24V

The White-Rodgers 50M56U-751 from Copeland Comfort Control is a universal 24V integrated furnace control module replacement kit designed to replace many OEM and aftermarket controls. Engineered for reliability and compatibility, this control board offers enhanced diagnostics, flexible output options, and simplified installation, making it the go-to solution for HVAC professionals and contractors.

✅ Key Features:

• Universal 24V module replacement kit

• Integrated system diagnostic LED with fault recall

• Warm-up time: 17 seconds | Pre-purge: 30 seconds | Reset delay: 60 minutes

• Supports low-speed continuous fan operation

• Self-test installation routine simplifies startup

• Multiple output options:

  • 120V igniter output

  • Electronic air cleaner output

  • 120V or 24V humidifier output

• Wide operating temperature range: -40°F to 175°F

• Compatible with a wide range of gas furnaces

⚙️ Technical Specifications:

• Voltage: 25 VAC

• Amperage: 0.45 A

• Frequency: 50/60 Hz

• Dimensions: 5-1/4" W x 7" H x 1-1/4" D

• Relay Ratings:

  • Valve Relay: 1.5A @ 25VAC 50/60Hz

  • Igniter Relay: 6A @ 120VAC (resistive)

  • Inducer Relay: 2.2 FLA / 3.5 LRA @ 120VAC

  • Circulator Relay: 14.5 FLA / 25 LRA @ 120VAC

🔧 Applications:

Perfect for use in residential and light commercial gas furnace systems, this kit helps improve control accuracy, safety, and ease of diagnostics, while reducing the need for multiple control board inventories.

Ensure your HVAC system is running safely and efficiently with the White-Rodgers 50M56U-751 Integrated Furnace Control Kit. Trusted by professionals for quality and universal compatibility.
