Copeland Comfort Control (White Rodgers) 767A-372 Ignitor

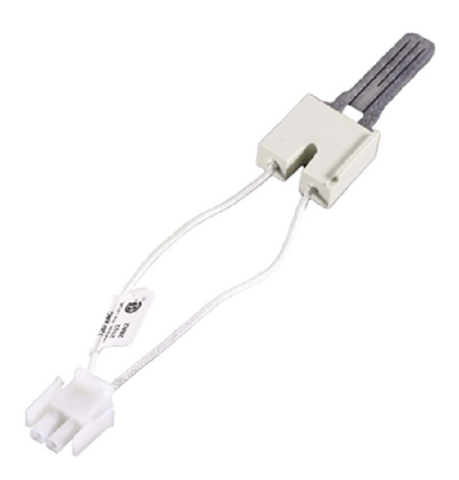

The Copeland Comfort Control (White Rodgers) 767A-372 Ignitor is a high-performance silicon carbide hot surface ignitor designed for high-volume OEM direct replacement applications. Engineered with an N-style mounting block, this 2.0 lb component facilitates precise alignment within the burner assembly. It features 5 1/4-inch leads insulated to withstand temperatures up to 200°C, terminating in a Molex side lock connector with 0.092-inch male pins for secure electrical integration. This 120V HSI element is technically rated for 15, 17, or 45-second ignition systems, making it a versatile choice for furnaces, boilers, and infrared heaters from brands like Rheem, Lennox, and Trane. For field technicians, the 767A-372 ensures reliable gas ignition by reaching high-temperature incandescence rapidly. To maintain the integrity of the carbide heating element, always handle the unit by the ceramic base to prevent skin oils from causing localized hotspots and premature fractures.

• Broad Compatibility: Acts as a direct 120VAC replacement for a wide range of OEM carbide-style ignitors in residential and commercial heating equipment.
• Thermal Resilience: High-grade lead insulation rated for 200°C prevents wire degradation in high-heat plenum environments.
• Secure Connection: Equipped with a Molex side lock connector and 0.092" pins to ensure vibration-resistant electrical contact.
• Versatile Timing: Validated for use with various Hot Surface Ignition (HSI) systems, including 15, 17, and 45-second warm-up cycles.
• N-Style Mounting: Standardized mounting configuration simplifies installation in tight burner compartments.

Is the 767A-372 compatible with my specific furnace brand?
This ignitor is a common direct replacement for many Rheem, Lennox, and Trane models. Check your existing lead length and connector style; the 767A-372 utilizes 5 1/4" leads and a side-locking Molex plug.

Can I touch the black element during installation?
No. You must handle the hot surface ignitor only by its ceramic base. Oils from your hands can cause the silicon carbide to fail shortly after the first few heat cycles.

What if my old connector doesn't match?
While this unit includes a specific Molex connector, it is often supplied with ceramic wire nuts to allow for "cut and strip" connections if the terminal housing differs from your original harness.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
