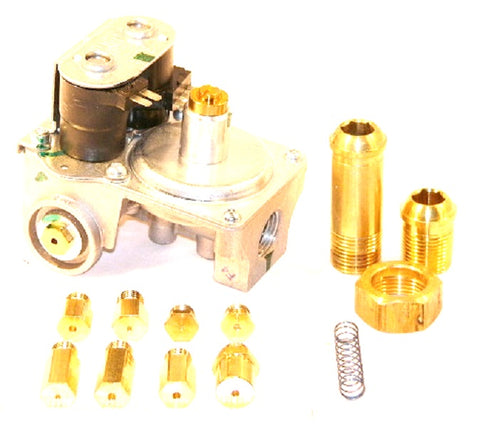

White-Rodgers 25M01A-100 Valve

The White-Rodgers 25M01A-100 is a heavy-duty universal dryer gas valve engineered for precision fuel management in residential and light commercial gas clothes dryers utilizing Hot Surface Ignition (HSI) systems. This 120V dual solenoid assembly features a compact split coil design that integrates both the redundant and main solenoid valves with a field-adjustable regulator, ensuring consistent manifold pressure regardless of supply fluctuations. Designed for maximum versatility on the truck, the 25M01A-100 utilizes a right-angle left application and is compatible with major manufacturers including Whirlpool, Maytag, GE, Frigidaire, and Speed Queen. The 3/8-inch NPT inlet and 11/32-inch outlet configuration, combined with its 40,000 BTU/HR capacity, makes it a reliable replacement for natural gas and LP applications. This direct lite dual solenoid valve includes an inlet/outlet screen to prevent debris fouling and an outlet pressure tap for accurate field tuning when switching between fuel types or verifying OEM specifications.

• Universal Compatibility: Replaces standard dryer gas valves for most domestic brands, reducing the need for multiple SKU inventories.
• Dual Solenoid Reliability: Features redundant solenoid valves to ensure safe operation and precise control during the ignition cycle.
• Flexible Installation: Engineered for right-angle left configurations and can be mounted in horizontal, vertical, or 90-degree positions.
• Field Serviceability: Includes replaceable operating coils, allowing for coil swaps without breaking the gas line or interrupting supply.
• Dual Fuel Ready: Suitable for Natural or LP gas with a direct-acting regulator adjustable from 2.8" to 12.0" W.C.

Common Questions

Is the White-Rodgers 25M01A-100 compatible with my dryer?
This unit is a universal replacement for most dryers using HSI systems. Verify that your current valve uses a 120V 3-terminal connector and a right-angle left flow pattern before installation.

Can I use this for both Natural Gas and Propane?
Yes, the 25M01A-100 is rated for both fuels. It features a field-adjustable regulator and typically includes the necessary orifices for conversion to meet specific appliance requirements.

How do I test the solenoids on this valve?
Technicians should check resistance across the booster/holding coils and secondary coils using a multimeter. Ensure the 120V supply is correct and the hot surface ignitor is glowing before suspecting valve failure.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
