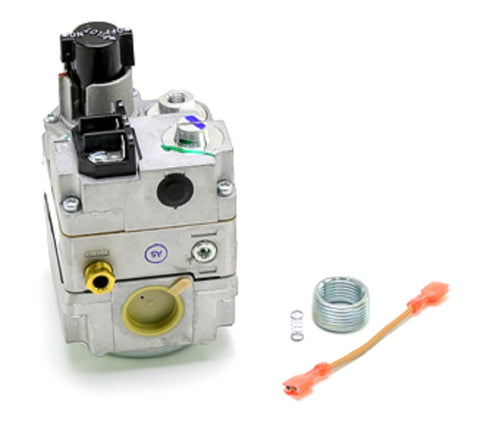

White-Rodgers 36C03-300 Gas Valve

The White-Rodgers 36C03-300 Gas Valve is a 24V single stage universal solution engineered for standing pilot systems. Designed for high-capacity throughput, this combination gas valve features a 1/2" x 3/4" NPT connection and provides a 230,000 BTU/HR rating, making it a reliable field replacement for the 624537 gas valve as well as numerous Intertherm, Nordyne, and Miller models. It includes a thermocouple-actuated line interrupter for 100% shut-off safety and ECO terminals for integration with limit controls.

The 36C03-300 comes factory-set for natural gas at 3.5" W.C. but includes an LP conversion kit for liquid propane applications. Its fast opening design ensures immediate burner ignition, while the adjustable regulator allows for precise gas valve pressure settings ranging from 2.5" to 5.0" W.C. for natural gas. This straight-through valve allows for versatile mounting from upright to 90 degrees in any direction, accommodating tight plenum spaces during service calls.

Key Benefits

• Universal Compatibility: Serves as a direct White-Rodgers 36C03-300 replacement for hundreds of standing pilot models with included reducer bushings (3/4" to 1/2" and 1/2" to 3/8").
• High Capacity Output: Rated for up to 230,000 BTU/HR (NAT) or 372,600 BTU/HR (LP) to support large residential and light commercial equipment.
• Flexible Installation: Can be mounted in any orientation except upside down, simplifying retrofits in varied furnace configurations.
• Safety Integrated: Features a 100% shut-off automatic pilot and a built-in pressure tap for verifying manifold pressure.

Common Questions

• Can I use this gas valve for propane furnaces? Yes, the White-Rodgers 36C03-300 includes an LP conversion kit and the regulator is adjustable up to 12.0" W.C. for liquid propane.
• What is the difference between 36C03-300 and 624537? These parts are identical in form, fit, and function; the 36C03-300 is the official technical replacement for the Nordyne 624537.
• Is a thermocouple required? Yes, this valve is thermocouple-actuated. A standard 30mV thermocouple is recommended for proper line interrupter operation.
