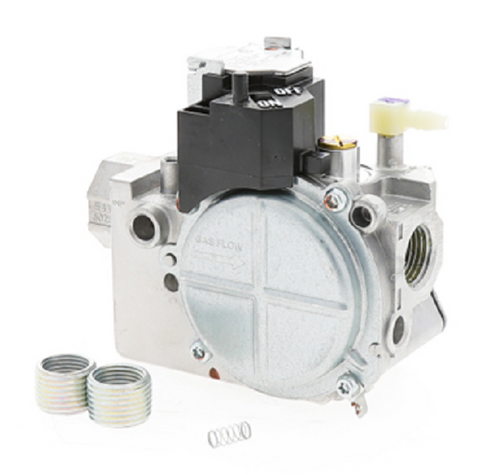

White-Rodgers 36J22-214 Gas Valve

The White-Rodgers 36J22-214 Gas Valve is a single stage gas valve designed for high-efficiency performance in modern HSI/DSI ignition systems. Built with a compact footprint to fit tight furnace vestibules, this 24V gas valve features a fast opening characteristic for consistent burner ignition. As a direct replacement for 51H25 and the obsolete 36G22-214, this combination gas control offers the versatility required for field service across multiple OEM brands including Carrier, Trane, and York. The unit comes factory-calibrated for natural gas at 3.5" W.C. but includes an LP gas conversion kit to handle propane applications. With a 1/2" x 1/2" NPT configuration and 140,000 BTU capacity, this valve utilizes inlet and outlet pressure taps for precise manifold pressure adjustments, ensuring the system operates within manufacturer specifications. The quiet redundant magnetic operator provides reliable flow control, making it a preferred choice for residential and light commercial HVAC furnace repair.

Key Benefits

• Broad Compatibility: Acts as a primary universal gas valve for major brands like Goodman, York, and Lennox (replacing 51H25).
• Compact Footprint: The 36J series is the most compact White-Rodgers gas valve, allowing for easier installation in narrow heater cabinets.
• Easy Pressure Monitoring: Integrated inlet/outlet pressure taps allow technicians to verify gas flow without removing piping.
• All-In-One Kit: Includes LP conversion kit, reducer bushings, and a plastic hose barb for connection to pressure switches.
• Mounting Versatility: Specifically designed to maintain performance even when mounted in multi-poise positions.

Common Questions

Is the 36J22-214 a suitable replacement for my 51H25?
Yes, this model is the direct replacement for 51H25. It maintains the same 1/2" 24V fast open specs required for those ignition sequences.

Can I use this valve on a propane (LP) furnace?
Yes, while it is set for natural gas out of the box, it includes the necessary components for LP gas conversion in the field.

What ignition systems is this valve compatible with?
It is designed for non-piloted intermittent ignition, specifically Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI) systems.
