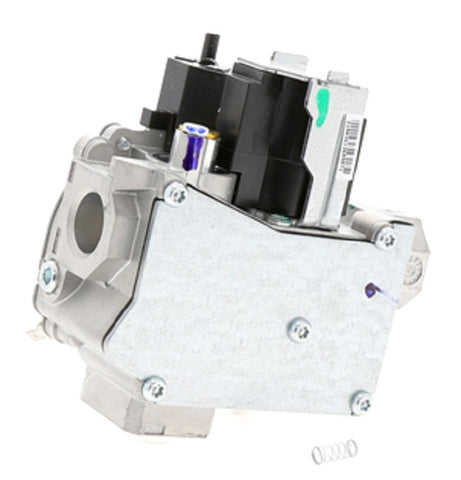

White-Rodgers 36J24-614 Gas Valve

The White-Rodgers 36J24-614 Gas Valve is a technical-grade single-stage combination gas control designed for high-efficiency non-piloted intermittent ignition systems. Engineered for Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI), this 24V slow-open valve features a compact footprint and high-capacity performance. With a 1/2" NPT inlet and bottom outlet (90-degree) configuration, it delivers a 140,000 BTU/hr capacity for natural gas and 226,800 BTU/hr for liquid propane. Professionals rely on its multipoise mounting capability, allowing installation in any position, including upside down, to accommodate tight cabinet clearances. The 36J24-614 serves as a direct OEM replacement for Carrier 36G24-618P1 (EF32CW206) and 36J24-618P1 (EF32CW210). This natural to LP gas convertible valve includes an integrated LP conversion kit, built-in 1/8" NPT pressure taps, and 1/4" quick-connect terminals to streamline diagnostic testing and field installation.

Key Benefits

• Compact Versatility: The 36J series gas valve has a reduced swing radius of 2.075", making it ideal for modern high-efficiency furnace cabinets.
• Field Serviceability: Equipped with built-in pressure taps and any-position mounting for simplified access and troubleshooting in the field.
• Broad Compatibility: Functions as a high-reliability direct burner ignition control for various residential and commercial HVAC units.
• Durable Construction: Features tamper-resistant screws and controlled gasket compression to maintain integrity under high inlet pressures.
• Quiet Operation: Designed with a quiet redundant solenoid system to ensure soft ignition characteristics and minimal operational noise.

Common Questions

Is the 36J24-614 suitable for LP gas conversions?
Yes, this is a convertible gas valve. It is factory-set for natural gas but includes the necessary LP conversion kit to adjust the regulator for liquid propane applications.

Can I install this valve in a horizontal or upside-down position?
The White-Rodgers 36J24-614 is designed for multipoise mounting, meaning it maintains full operational accuracy and safety in any orientation.

Does this replace the Carrier gas valve EF32CW210?
Correct. This model is the primary volume replacement for the Carrier 36G24-618P1 and EF32CW210 series, ensuring identical electrical and mechanical interfaces.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
