White-Rodgers 3L09-13 Limit Switch

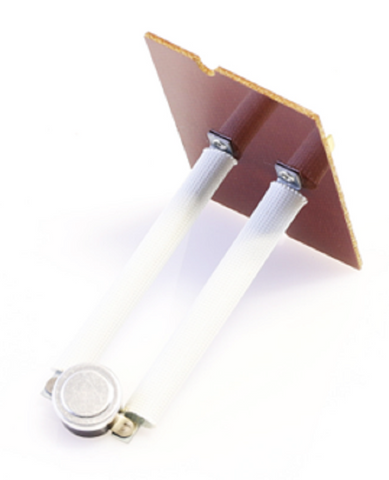

The White-Rodgers 3L09-13 Limit Switch is a mission-critical board mounted 1/2" bimetal disc limit switch designed for rapid response and high-speed contact separation in residential and commercial furnaces. Built with a 3.12" insertion length, this fixed temperature limit control is factory-calibrated to a 240 degrees F fixed open temperature and a 210 degrees F fixed close temperature. Operating on an open on rise switch action, it provides essential over-temperature protection to prevent heat exchanger damage and ensure safe system cycling. The unit features an auto reset mechanism and is engineered for easy integration onto control boards, utilizing the proven Therm-O-Disc Type 36T architecture. For contractors troubleshooting cycling issues, this switch offers a reliable HVAC replacement part solution compatible with various White-Rodgers furnace controls and OEM heating applications.

• Precise Thermal Control: Factory-preset 240°F cut-out and 210°F cut-in ensure consistent safety parameters without the need for field adjustment.
• High-Speed Contact Separation: Engineered for high-speed contact separation to maximize service life and reduce electrical arcing.
• Direct Board Mounting: Designed specifically for board-mounted applications, streamlining HVAC limit switch installation.
• Reliable Auto-Reset: The automatic reset snap disc function allows the system to resume normal operation once the temperature drops below the fixed 210°F threshold.

How do I test the White-Rodgers 3L09-13 for continuity?
With the power disconnected and the switch at room temperature, use a multimeter to check for continuity across the terminals. Since this is an open on rise switch, you should read closed continuity under normal conditions; an open reading at room temperature indicates a failed component.

Will this limit switch replace a 3L09-14 or 3L09-15?
Compatibility is strictly tied to temperature ratings. A 3L09-13 opens at 240°F, whereas other models in the 3L09 series have different setpoints. Always match the "L" number (e.g., L240) on your existing part to ensure the furnace maintains its safety and efficiency ratings.

What causes a furnace limit switch to trip repeatedly?
Frequent tripping usually indicates restricted airflow, such as a dirty 1" filter, blocked return vents, or a failing blower motor. If the airflow is verified as correct, the bimetal disc inside the limit switch may have weakened, necessitating a direct replacement to restore proper furnace cycling.
