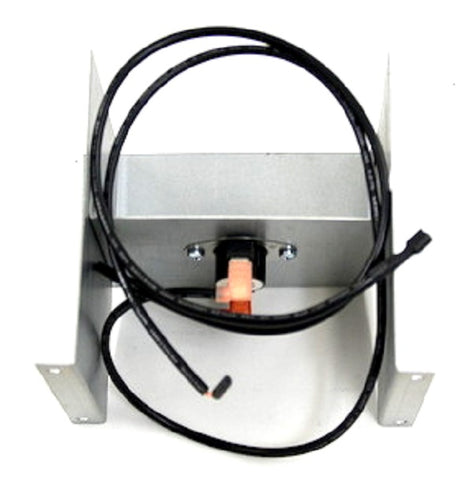

Williams 7699 Limit Switch

The Williams 7699 Limit Switch is a critical OEM safety device designed for furnace overheat protection in professional heating applications. Engineered for precision, this L95-10F limit switch features a 95°F high-limit cut-out with a 10°F differential, ensuring the combustion chamber remains within safe operating parameters. As a veteran-grade replacement furnace part, the 7699 model is built to handle the rigorous duty cycles of Williams gas-fired heaters, effectively monitoring plenum temperatures to prevent heat exchanger damage and dangerous system conditions.

For contractors performing maintenance or troubleshooting, this high limit switch serves as a reliable SPDT switch mechanism, capable of supporting 10A at 120VAC. Whether you are addressing furnace short cycling or a blower fan that runs continuously, the Williams 7699 provides the exact thermal response required for HVAC system safety. Its heavy-duty construction and precise calibration make it the standard for maintaining furnace blower control and protecting against restricted airflow issues in commercial and residential settings.

• Precise Thermal Calibration: Features a fixed L95-10F setpoint for accurate overheat protection in Williams units.
• OEM Compatibility: Authentic Williams Comfort Products 7699 replacement ensures direct fitment and restores original factory safety specs.
• Enhanced System Safety: Shuts down the gas valve immediately if plenum temperatures exceed the 95°F threshold.
• Durable Electrical Ratings: Robust SPDT design supports up to 10A at 120V, providing longevity under high-current loads.
• Improved Efficiency: Helps regulate the blower fan cycles to optimize airflow and prevent unnecessary component wear.

• Why is my Williams furnace short cycling? Frequent tripping of the limit switch often indicates restricted airflow, such as a clogged filter or blocked return air vents, causing the plenum to reach the 95°F limit prematurely.
• Can I bypass the 7699 limit switch for testing? While used for diagnostics by technicians, a limit switch must never be permanently bypassed; it is the primary safety control preventing heat exchanger cracks or fire hazards.
• Does this switch require a manual reset? The L95-10F is typically an automatic reset switch that restores the circuit once the plenum cools by the 10°F differential, though persistent tripping requires a full system inspection.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
