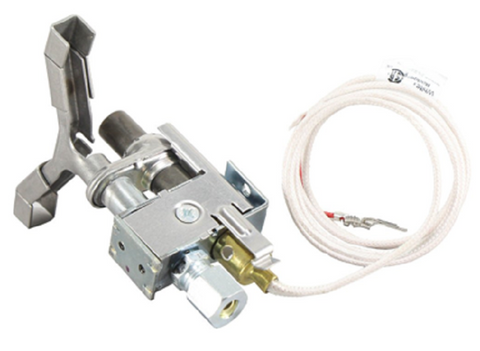

Williams P322396 Pilot Assembly

The Williams P322396 Pilot Assembly is a critical OEM natural gas pilot assembly specifically engineered for Williams Comfort Products heating systems. Designed for precision and field reliability, this thermopile generator and pilot combination ensures consistent ignition and millivolt signal output for the gas valve. It is the direct replacement for the Williams 5009822 Monterey Top Vent Furnace, providing a seamless fit without the need for manifold modifications. As a genuine furnace replacement part, it maintains the appliance's original safety listings and combustion efficiency. The high-grade construction resists thermal fatigue, preventing common nuisance outages in gravity-vented wall heaters. For technicians performing seasonal maintenance or a pilot light repair, this assembly includes the necessary orifice and bracketry for a quick swap, ensuring the HVAC ignition system returns to factory-spec performance. This part is essential for maintaining stable operation in 50,000 BTU Monterey models requiring NAT GAS fuel configurations.

Key Benefits for Technicians:

• OEM Compatibility: Precision-fit for Williams P322396 ensures zero downtime during installation on Monterey series wall furnaces.
• High-Output Thermopile: Delivers a strong millivolt signal to ensure the main gas valve opens reliably under load.
• Corrosion Resistance: Built with high-temperature alloys to withstand constant pilot flame exposure without premature carbon buildup.
• Consistent Flame Pattern: Optimized natural gas pilot assembly design provides stable flame impingement on the generator for faster response times.

Common Questions:

Is this pilot assembly compatible with Propane (LP) units?
No, the Williams P322396 is configured specifically for NAT GAS. Using this in an LP furnace will cause improper combustion and safety hazards.

Does this assembly include the thermopile/generator?
Yes, this is a complete pilot/generator assembly, including the thermopile required to generate the millivolt current for the furnace control system.

Why is my pilot light flickering or failing to stay lit?
Frequent outages often indicate a weak thermopile or a clogged pilot orifice. Replacing the entire Williams P322396 Pilot Assembly restores the proper millivolt output and flame geometry.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
