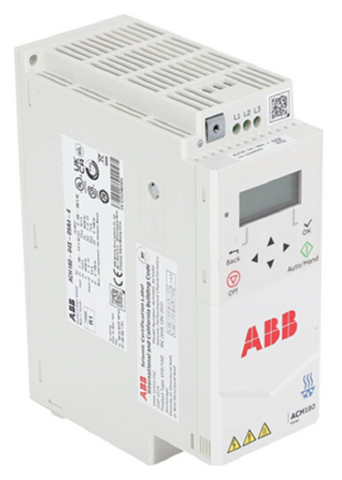

ABB ACH180-04S-09A4-4 VFD

The ABB ACH180-04S-09A4-4 is a compact variable frequency drive engineered for reliable speed control in HVAC fan and pump applications. Rated for 480VAC, 3-phase input with a 5 HP output and 7.6 FLA, this HVAC VFD drive provides precise motor control to improve system efficiency and reduce energy consumption. Designed for straightforward integration, it supports typical building automation requirements and is suitable for air handlers, cooling towers, and circulation pumps. The unit features built-in control capabilities that simplify setup and commissioning, making it a practical choice for retrofit or new installations. Contractors use this ABB ACH180 drive to maintain stable airflow, optimize motor performance, and extend equipment life under varying load conditions. Its NEMA configuration allows installation in standard enclosures, supporting dependable operation in commercial HVAC environments.

Key Benefits:

• 480VAC, 3-phase operation with 5 HP motor rating
• Supports precise speed control for fans and pumps
• Improves energy efficiency in HVAC systems
• Compact design for easy installation and retrofit
• Compatible with building automation and control systems

Common Questions:

Q: What is this drive used for?
A: It is used to control the speed of HVAC motors such as fans and pumps to improve efficiency and performance.

Q: Is this compatible with 480V systems?
A: Yes, it is designed for 480VAC 3-phase power applications.

Q: Can this be used for retrofit applications?
A: Yes, its compact design and standard configuration make it suitable for replacements and upgrades.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

ACH180-04S-09A4-4 is the cross for ACS320-03U-08A8-4
