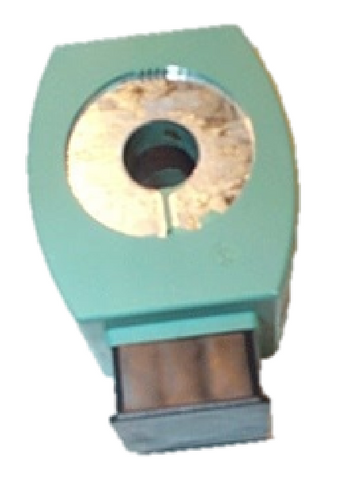

ASCO 238612-105 Coil

The ASCO 238612-105 Coil is a high-performance 24V AC replacement solenoid coil engineered for precise electromagnetic actuation in demanding HVACR and industrial environments. This 17.1-watt solenoid coil is specifically designed for integration with ASCO Series 238 solenoid valves, ensuring a drop-in fit that maintains factory flow specifications. Constructed with Class F insulation and rated for 60 Hz operation, this coil provides superior thermal resistance in high-cycle applications. The MXX/M12 coil size geometry and spade terminal connections facilitate rapid field installation for service contractors, reducing equipment downtime in critical process control and fluid handling systems.

• OEM Compatibility: Guaranteed to meet the exact electrical and mechanical footprints for ASCO 238612-105 configurations.
• High Thermal Rating: Class FB/HB insulation ensures stable performance in high-ambient temperature environments.
• Standardized Low-Voltage Control: Operates on 24V AC, making it compatible with most standard commercial HVAC control circuits.
• Certified Reliability: UL and CSA listed to ensure compliance with stringent safety and industrial standards.
• Optimized Actuation: 17.1W power rating provides the necessary magnetic force for reliable valve seating and opening.

Is the ASCO 238612-105 compatible with DC voltage?
No, this specific coil is engineered for 24V AC at 60Hz. Attempting to use this on a DC circuit will result in coil burnout or failure to actuate.

Do I need to replace the entire valve or just the coil?
If the valve body is intact but the coil shows signs of swelling or an open circuit (infinite resistance), the 238612-105 allows for a coil-only replacement to restore functionality.

What terminal style does this coil use?
This model features 1/4-inch spade terminals, allowing for secure and quick electrical termination in the field.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
