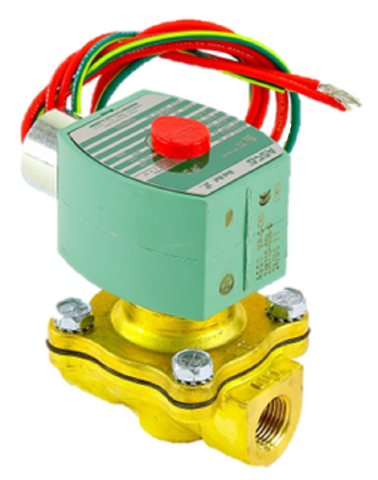

ASCO 8210G1-24VDC Solenoid Valve

The ASCO 8210G1-24VDC Solenoid Valve is an industrial-grade 2-way normally closed pilot-operated valve engineered for high-flow reliability in general service applications. Utilizing a rugged brass body and high-performance NBR (Buna-N) seals, this unit provides a controlled 3 Cv flow factor across air, water, and light oil media. Designed for precise fluid control, the 8210G1-24VDC operates within a pressure range of 5-125 PSI for air and 5-100 PSI for water and light oil. Its 3/8" NPT connection and 24VDC coil efficiency make it a staple for contractors maintaining car wash systems, air compressors, and industrial laundry equipment. The NEMA 4X enclosure ensures superior protection in washdown or corrosive environments, maintaining operational integrity where standard valves fail. For field technicians, the ASCO RedHat II 24VDC architecture simplifies integration into existing DC control loops while ensuring low internal leakage and a long service life.

• Efficient Pilot Operation: Achieves high flow rates with a 5/8" orifice, making it the most economical choice for large volume water and air systems.
• Harsh Environment Protection: Integrated NEMA 4X watertight enclosure resists corrosion and moisture ingress, ideal for industrial washdown areas.
• Universal Media Compatibility: Versatile NBR seals allow for seamless handling of air-inert gas, water, and light oils up to 180°F.
• Field-Proven Reliability: The ASCO 8210 Series design minimizes internal leakage and withstands high-cycle industrial automation demands.

What is the minimum pressure required for this valve to operate?
As a pilot-operated valve, the ASCO 8210G1 requires a minimum differential pressure of 5 PSI to reliably open and stay open.

Can this 24VDC valve be used in outdoor applications?
Yes, the NEMA 4X rated enclosure provides the necessary protection against windblown dust, rain, and hose-directed water.

Is there a rebuild kit available for the 8210G1-24VDC?
Generic maintenance can be performed using the ASCO 302273 repair kit, which includes the diaphragm and necessary internal components to restore factory performance.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
