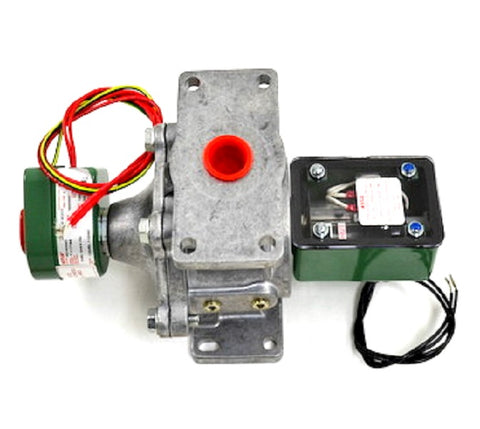

ASCO 8214235CCSA Solenoid Valve

The ASCO 8214235CCSA Solenoid Valve is a high-performance 2-way normally closed gas shutoff valve designed specifically for the rigorous demands of commercial and industrial gas burners. Engineered with a 3/4" NPT connection and a rugged aluminum body, this fuel gas valve delivers a substantial flow capacity of 11 Cv, or approximately 593,200 BTU/hr. Operating on 120Vac, it provides a reliable low-pressure safety shutoff solution within a 0-5 PSI range. A standout feature of the 8214 series is the integrated proof of closure switch, providing an electrical interlock and visual indication to ensure the valve is fully seated, meeting stringent NFPA and FM safety requirements. With durable NBR seals and a NEMA 1 enclosure, this valve is built for long-term stability in critical combustion system applications such as boilers, furnaces, and kilns.

• Enhanced Safety: Features an 1-amp SPST proof of closure switch and visual indicator for verified valve positioning.
• Maximum Flow: High-flow 11 Cv capacity supports high-demand heating equipment up to 593,200 BTU/hr.
• Redundant Sealing: Unique double-disc design with overtravel provides superior, leak-tight closure.
• Quick Response: Reliable direct acting operation ensures opening and closing times of less than one second.
• Easy Maintenance: Includes 1/8" NPT pipe taps for simplified routine pressure and leakage testing.

What is the purpose of the "C" suffix in the part number?
The "C" suffix indicates that this model includes both a visual position indicator and a proof of closure (POC) switch, which are often factory-required for FM-approved gas trains.

Can this valve be used for applications other than fuel gas?
While optimized for fuel gas shutoff, the 8214 series construction with NBR seals is generally suitable for air and inert gases, but compatibility with specific media should always be verified against your system requirements.

Is this valve suitable for high-pressure systems?
No, the ASCO 8214235CCSA is specifically rated for low-pressure environments between 0 and 5 PSI.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
