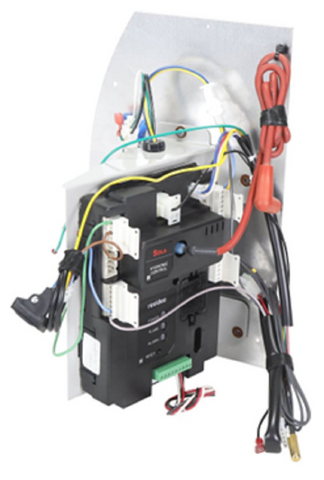

Bradford White 243-54158-00 Control Box

The Bradford White 243-54158-00 Control Box is a critical electronic component designed for high-efficiency water heating systems, including the EF-60T and EF-100T series. As an authentic OEM Bradford White replacement part, this control assembly manages the burner ignition sequence and monitors flame safety parameters to ensure reliable operation. It regulates power to the heating elements or gas valves while providing advanced diagnostics via an LED interface for rapid field troubleshooting. This ignition control module is engineered to withstand the thermal demands of commercial and residential environments, acting as the primary hub for system logic and safety limits. Integrating this water heater control box into your system maintains the original performance specifications and ensures proper communication between the thermostat and combustion components. For contractors, using a genuine 243-54158-00 control assembly ensures exact fitment and avoids the common failure points associated with generic aftermarket boards.

• Precise Burner Management: Coordinates the ignition sequence and flame sensing for consistent heating cycles.
• Enhanced System Safety: Monitors critical parameters to prevent overheating and ensure safe shutdown if a fault is detected.
• Onboard Diagnostics: Features LED status lights to help technicians quickly identify error codes and system faults.
• Industrial-Grade Construction: Built with robust materials to resist moisture and vibration in demanding HVACR environments.
• Sola 5000 RPM Compatibility: Specifically designed to integrate with high-performance blower and ignition configurations.

What does a flashing LED on the 243-54158-00 signify?
The LED provides diagnostic codes; a single flash every few seconds typically indicates standby mode, while specific pulse patterns point to ignition failure, weak pilot signals, or limit switch trips.

Is this control box compatible with EF series commercial heaters?
Yes, this unit is the standard replacement for various high-efficiency Bradford White EF-60 and EF-100 models using electronic ignition.

Can I install this part myself?
Technical components involving gas ignition and electrical logic should only be installed by a qualified HVACR technician to ensure proper calibration and safety compliance.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
