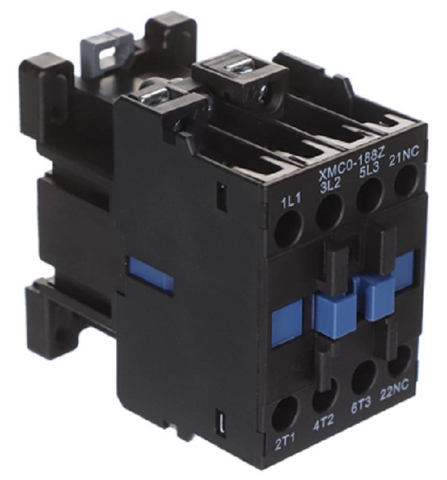

Carrier 11203502000084 Contactor

The Carrier 11203502000084 Contactor is an OEM replacement electrical switching component used in compatible Carrier duct-free HVAC outdoor units.

This 3-pole HVAC contactor has a 220V coil, 50/60 Hz frequency, 12-amp rating, and a normally closed auxiliary contact. The contactor switches electrical loads within the HVAC equipment when energized by the system's control circuit.

Parts information lists the Carrier 11203502000084 for compatible duct-free equipment, including the Carrier 38MVQ024-301 heat pump and certain 38MVC-series cooling-only outdoor units. It is also identified as a replacement for obsolete Carrier part number 202300850053.

Before replacement, verify the complete equipment model, original contactor part number, coil voltage, amperage, pole configuration, auxiliary contact arrangement, terminals, and wiring.

Key Benefits

• Manufacturer: Carrier
• Part Number: 11203502000084
• Product Type: HVAC Contactor
• Configuration: 3 Pole
• Coil Voltage: 220V
• Frequency: 50/60 Hz
• Current Rating: 12 Amp
• Auxiliary Contact: Normally Closed
• Designed for compatible Carrier duct-free HVAC equipment
• Listed for Carrier 38MVQ024-301 applications
• Listed for compatible Carrier 38MVC-series applications
• Replaces obsolete Carrier part number 202300850053

Common Questions

What is the Carrier 11203502000084?
It is a 3-pole electrical contactor used in compatible Carrier HVAC equipment to switch electrical loads through the equipment control circuit.

What are the electrical specifications?
Published parts information identifies it as a 220V, 50/60 Hz, 12-amp contactor with three poles and a normally closed auxiliary contact.

Does Carrier 11203502000084 replace another part number?
Yes. Parts references identify 11203502000084 as a replacement for obsolete Carrier part number 202300850053.

What Carrier equipment uses this contactor?
Parts references list it for compatible Carrier duct-free equipment, including the 38MVQ024-301 heat pump and certain 38MVC-series cooling-only outdoor units.

How do I confirm compatibility?
Verify the complete Carrier equipment model and original contactor part number. Also confirm the coil voltage, amperage rating, number of poles, auxiliary contact configuration, terminal arrangement, and wiring before replacement.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

11203502000084 is the cross for 11203502000005
