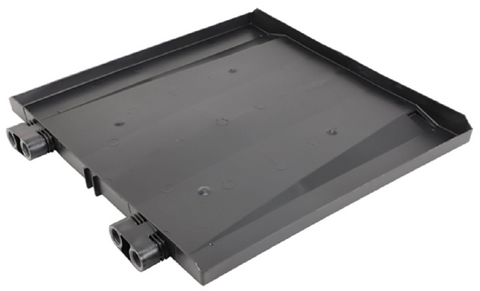

Carrier 343314-75102 Condensate Pan

When you are dealing with a cracked or leaking drainage system in a horizontal furnace or air handler, the Carrier 343314-75102 Condensate Pan is the specialized OEM component required to restore professional-grade moisture management. This horizontal condensate pan is engineered for high-performance HVAC condensate drainage, specifically designed to fit within the restrictive dimensions of horizontal evaporator coil cabinets. Utilizing a heavy-duty, corrosion-resistant plastic or galvanized steel construction, this tray serves as the primary collection point for moisture pulled from the air during the cooling cycle, preventing structural water damage and AC unit leaking issues.

For a veteran contractor, the technician-focused design of the 343314-75102 offers a seamless fit with 3/4 inch threaded drain outlets, ensuring a secure connection to the primary and secondary drain lines. Measuring approximately 21 7/8" x 21" (or up to 25" x 24" depending on specific kit iterations), this OEM Carrier replacement part features a precision-sloped floor to eliminate standing water and mitigate the risk of biological growth within the pan. Whether you are performing a routine evaporator coil pan replacement or correcting a failed secondary drain system, this HVAC drain pan provides the exact factory specifications needed for a drop-in installation on compatible Carrier and Bryant fan coils.

• Direct OEM Compatibility: Ensures exact fit for specific Carrier horizontal fan coils and evaporator units without the need for field modifications.
• Enhanced Drainage Geometry: Features a sloped bottom design to maximize water flow toward the 3/4 inch condensate port.
• Industrial Durability: Constructed from high-stability materials to resist the thermal stress and acidic nature of HVAC condensate.
• Integrated Safety: Designed to work with standard overflow switches to prevent multi-story water damage in horizontal attic or crawlspace installs.

Is the Carrier 343314-75102 compatible with all horizontal air handlers?
No, this pan is specifically engineered for certain Carrier, Bryant, and Payne horizontal coil models. You should verify the dimensions and mounting points against the original part before installation.

What is the primary cause of failure for these condensate pans?
Most failures occur due to improper leveling of the unit or environmental stress causing the plastic to become brittle over time. Replacing with a genuine 343314-75102 ensures the material meets factory standards for longevity.

Does this kit include the drain plugs and mounting hardware?
This specific part is often provided as a primary pan; always check if your existing hardware and plugs can be transferred or if additional 3/4" PVC fittings are required for the new drain line connections.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
