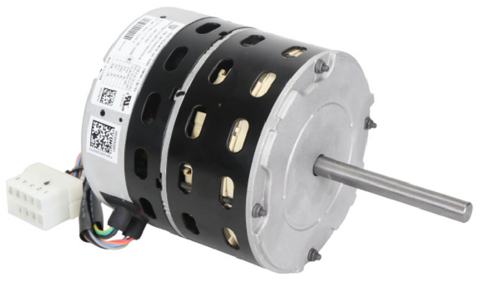

Carrier HD42AQ261 Motor

The Carrier HD42AQ261 ECM Motor and Module is an OEM blower motor assembly designed for compatible Carrier HVAC air handlers and fan-coil equipment. This Carrier ECM blower motor combines the motor and electronic control module into one service assembly for controlled airflow during heating and cooling operation.

The HD42AQ261 is rated at 208/230V, 1/3 HP, 1050 RPM, with counterclockwise (CCW) rotation. The ECM technology allows the equipment controls to regulate blower operation and airflow based on system demand.

The HD42AQ261 is also identified as a replacement for select older Carrier ECM motor assemblies, including HK42ER237, HD42AE232, and HD42AE237. Before ordering, verify the equipment model and serial number, original motor part number, voltage, horsepower, RPM, rotation, connector configuration, and blower application.

Key Benefits

• Manufacturer: Carrier
• Part Number: HD42AQ261
• Product Type: ECM Blower Motor with Control Module
• Voltage: 208/230V
• Horsepower: 1/3 HP
• Speed: 1050 RPM
• Rotation: CCW
• OEM motor and electronic control module assembly
• Designed for compatible Carrier HVAC blower applications
• Replaces select older Carrier ECM motor/module assemblies

Common Questions

Does the Carrier HD42AQ261 include the control module?
Yes. The HD42AQ261 is supplied as an ECM blower motor assembly with the electronic control module.

What parts does the HD42AQ261 replace?
Published replacement references identify it as a replacement for HK42ER237, HD42AE232, and HD42AE237.

How do I confirm compatibility?
Verify the complete HVAC equipment model and serial number along with the original motor part number, voltage, horsepower, RPM, rotation, connector configuration, and blower application before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

HD42AQ261 is the cross for HD42AE232
