Copeland 066-0304-02 Condenser Coil

The Copeland 066-0304-02 Air-Cooled Condenser Coil is a genuine Copeland OEM air condenser coil, the heat-rejection half of an air-cooled refrigeration or air conditioning system. The condenser coil is where the system gets rid of the heat it has picked up: hot discharge gas from the compressor enters the coil, the condenser fan pulls outdoor air across the fins, and the gas desuperheats, condenses and subcools into liquid refrigerant before it heads to the metering device. When that coil is dirty, bent or leaking, head pressure climbs and the whole system pays for it.

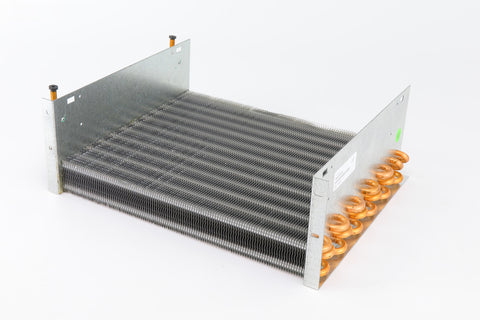

The product photo shows the construction: aluminum plate fins pressed onto copper tube rows, galvanized steel end plates, formed copper tube bends along one end plate and two capped refrigerant connection stubs at the opposite end, with a barcode label on the end plate. The copper-and-aluminum build is what gives a condenser coil its heat transfer, and the galvanized end plates are what hold the finned block square in the cabinet. Because every Copeland unit is built around its own coil dimensions, confirm the model number and serial number from the unit's nameplate before ordering, and contact our team if you want a second set of eyes on the fit.

The classic failure patterns are easy to recognize. A fouled coil (cottonwood, grease, dirt or lint packed into the fins) shows up as high head pressure, high compressor amp draw, long run times and, eventually, a high-pressure cutout. Physical damage from hail, a string trimmer or careless cleaning flattens the fins and chokes airflow. Corrosion and vibration fractures show up as oil stains and a system that keeps losing refrigerant. Clean first, working from the inside out with a proper coil cleaner and a fin comb, and check the condenser fan motor and fan blade while you are in there. If a leak has opened up in the tube circuits, replace the coil: recover the refrigerant per EPA Section 608, braze with a nitrogen purge, install a new filter drier, pressure test with dry nitrogen, evacuate to a deep vacuum and weigh in the charge.

Key Benefits

• Genuine Copeland OEM: Factory part number 066-0304-02, not a generic replacement coil.
• Restores Heat Rejection: A clean, leak-free condenser coil brings head pressure and amp draw back to where they belong.
• Solid Construction: Aluminum fins, copper tubing and galvanized end plates, as shown in the product photo.
• Capped Connection Stubs: The photo shows the refrigerant connections capped and ready for the brazing step.

Common Questions

• What does the Copeland 066-0304-02 do? It is the air-cooled condenser coil: it rejects heat from the hot discharge gas so the refrigerant can condense back to liquid.
• How do I know whether the coil needs replacing or just cleaning? If head pressure and amp draw drop back to normal after a proper cleaning, it was fouled. If the system keeps losing charge, shows oil staining or fails a nitrogen leak test, the tube circuits have a leak and the coil should be replaced.
• What else should I replace during the job? Always install a new liquid line filter drier, use dry nitrogen while brazing, pressure test and evacuate before charging, and inspect the condenser fan motor, fan blade and contactor for wear.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
