Copeland 580-0070-00 Board Assembly

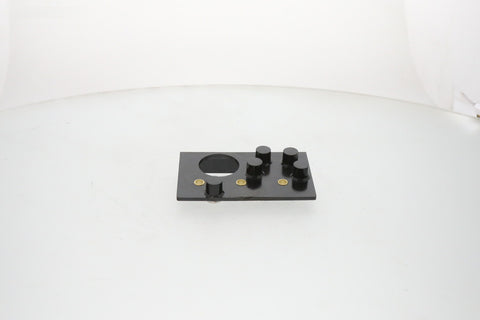

The Copeland 580-0070-00 Terminal Board Assembly is the OEM BOARD-TERM ASSM, the insulating terminal board that sits in the compressor terminal box and holds the electrical connections for the motor. Copeland's service parts list shows 580-0070-00 as item 19, quantity 1, for the KAA2-0075-IAA and KAAB-007A-IAA Copelametic hermetic reciprocating compressors (115V, single-phase, 60 Hz, low-temperature refrigeration). The assembly is a black molded board carrying five terminal posts, three brass eyelets and a large round opening.

A terminal board has a hard job: it keeps the line-voltage connections isolated from the compressor shell and from each other while taking heat, vibration and the occasional wiring mistake. Over time a board can crack, carbon-track between posts, or develop loose or burnt terminals. That shows up as arcing, a tripping breaker or protector, intermittent running, or discolored, melted connectors in the terminal box. Replace a damaged board rather than patching it, and inspect the hermetic terminal pins and wiring while the box is open. Related parts on the same Copeland parts list include the 521-0003-00 terminal-insulator assembly, the 062-0003-01 terminal box and the 005-0010-00 terminal box cover.

Key Benefits

• OEM Replacement Board: Exact Copeland BOARD-TERM ASSM for the KAA2-0075-IAA / KAAB-007A-IAA compressor family.
• Restores Safe Terminations: Replaces cracked, tracked or burnt boards that cause arcing and tripped protection.
• Complete Assembly: Terminal posts and eyelets come mounted on the board, so you are not rebuilding it from loose parts.
• Keeps an Existing Compressor Running: A practical service part for Copelametic hermetic compressors still in the field.

Common Questions

• What compressors is it listed for? Copeland's service parts list shows 580-0070-00 for the KAA2-0075-IAA and KAAB-007A-IAA hermetic reciprocating models, which are 115V, single-phase, 60 Hz.
• What signs point to a bad terminal board? Cracking, burn marks or carbon tracking on the board, melted connectors, arcing, or intermittent power at the compressor terminals.
• What else is in the terminal area? The same parts list shows the 521-0003-00 terminal-insulator assembly, the 062-0003-01 terminal box and the 005-0010-00 cover; inspect them when you replace the board.
