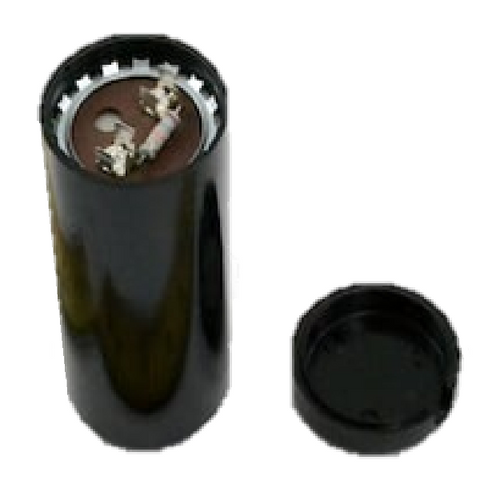

Copeland 914-0008-57 Start Capacitor

The Copeland 914-0008-57 is a high-performance motor start capacitor engineered for single phase refrigeration systems and HVAC compressors requiring high starting torque. This round, electrolytic component features a capacitance rating of 243-292 MFD and operates at 115V (compatible with 110-125V applications). As a direct OEM replacement for the discontinued Copeland 014-0061-06, it ensures seamless compatibility with existing electrical arrays without the need for mounting modifications.

Designed to meet EIA-463-B industry standards for Type 1 heavy-duty requirements, this capacitor is built for reliability in demanding commercial and industrial environments. The 914-0008-57 incorporates a bleed resistor soldered across the terminals, which is critical for protecting start relays by quickly depleting the stored charge. This prevents erratic relay operation and contact pitting during short-cycling, extending the operational life of the entire starting circuit. For technicians, the compact design and standard terminal configuration allow for efficient field 1:1 swaps on Copeland compressors.

• Direct OEM Cross-Reference: Precisely replaces legacy part 014-0061-06 to maintain original system specifications.
• Integrated Bleed Resistor: Protects start relay contacts from arcing and overheating during rapid cycling.
• High Torque Output: Provides necessary phase shift for reliable motor starting in high-head pressure conditions.
• Regulatory Compliance: Meets UL and CSA certification standards for hermetic and semi-hermetic compressor service.

Is the 914-0008-57 compatible with 230V systems?
No, this capacitor is rated for 115V. Do not use this part in 230V circuits, as it will result in immediate component failure.

Can I use this if my old capacitor doesn't have a resistor?
Yes. The resistor is a safety feature that drains voltage; it is highly recommended even if the original part lacked one, as it protects your start relay.

What happens if I use a higher MFD rating?
Using a capacitor outside the 243-292 MFD range can cause excessive motor winding heat or insufficient starting torque. Always match the OEM-specified capacitance range for Copeland compressors.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
