Copeland Comfort Control (White Rodgers) 1F83C-11PR Thermostat

20-30Vac Hardwire or mV-30Vac Battery, 7 Day or 5+1+1 Day Programmable or Non-Programmable, 4 or 0 Periods Per Day, 1 Heat/1 Cool Conventional or 1 Heat/1 Cool Heat Pump, 45-99 degree F Setpoint, 80 Series Single Stage/Heat Pump Electronic Thermostat with Keypad Lockout

1F83C-11PR is the direct replacement for 1F80-0471, 1F80-240

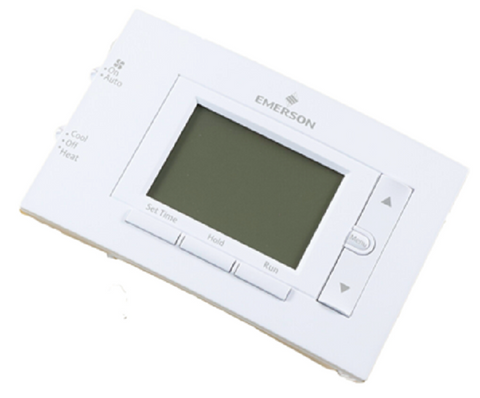

Copeland Comfort Control 1F83C-11PR Thermostat by White Rodgers – 80 Series Single Stage/Heat Pump Electronic Thermostat

The Copeland Comfort Control 1F83C-11PR Thermostat, manufactured by White Rodgers, delivers precision climate control in both residential and light commercial environments. This versatile thermostat supports 1 Heat/1 Cool conventional systems and 1 Heat/1 Cool heat pump systems, making it an excellent choice for a wide variety of HVAC applications.

With the flexibility of 7-Day or 5+1+1 Day programming (or non-programmable modes), users can customize comfort settings according to their lifestyle. The 4 or 0 periods per day feature allows further personalization for maximum energy efficiency and comfort.

This electronic thermostat is powered via hardwired 20-30VAC or battery (mV-30VAC), giving you multiple installation options. Equipped with a user-friendly interface, a large clear display, and keypad lockout, it’s ideal for homes, rentals, and commercial spaces where tamper resistance is needed.

🔧 Key Features & Specs:

• Model: 1F83C-11PR

• Brand: Copeland (White Rodgers)

• Power Options: 20-30VAC hardwire or mV-30VAC battery

• Programming Modes: 7-Day or 5+1+1 Day or Non-Programmable

• System Compatibility: 1 Heat/1 Cool Conventional or 1 Heat/1 Cool Heat Pump

• Temperature Setpoint Range: 45°F to 99°F (7°C to 37°C)

• Display Range: 32°F to 99°F (0°C to 37°C)

• Differential Options: Fast, Medium, Slow

• Ambient Operating Temp: 32°F to 105°F (0°C to 41°C)

• Humidity: 90% non-condensing

• Dimensions: 3-3/4” H x 6” W x 1-1/8” D

• Tamper-Resistant: Keypad Lockout feature

✅ Benefits:

• Fully programmable for energy savings and comfort

• Easy-to-read digital display with user-friendly controls

• Compatible with a range of HVAC systems

• Secure settings with keypad lockout – perfect for rentals or commercial use

• Compact design for modern interiors

• Reliable performance with White Rodgers quality

Upgrade to the 1F83C-11PR Comfort Control Thermostat for flexible, accurate, and efficient temperature management. Ideal for contractors, homeowners, and facility managers seeking dependable performance with advanced programmability.
