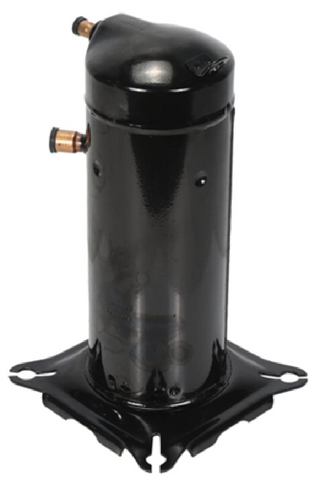

Copeland ZP29LXE-TF5-800 Compressor

200/230v3ph R410a Compressor

Copeland ZP29LXE-TF5-800 Scroll Compressor – 29,000 BTUH, 200/230V 3-Phase, R-410A

Enhance your HVAC system’s performance with the Copeland ZP29LXE-TF5-800 Scroll Compressor, a high-efficiency, factory-new OEM solution designed for residential and light commercial applications. Engineered to deliver 29,000 BTUH of reliable cooling power, this three-phase scroll compressor operates on 200–230V at 60Hz or 200–220V at 50Hz, making it compatible with a wide range of systems.

Optimized for use with R-410A refrigerant, the ZP29LXE-TF5-800 is pre-charged with Polyol Ester (POE) oil and features an internal motor protector for added reliability and system safety. With stub tube connections—3/4" suction and 1/2" discharge—this compressor is built for easy installation and long-lasting performance.

Key Features:

• Model: ZP29LXE-TF5-800

• Brand: Copeland (Genuine OEM)

• Compressor Type: Scroll

• Cooling Capacity: 29,000 BTUH

• Voltage: 200/230V 3-Phase (60Hz), 200/220V 3-Phase (50Hz)

• Refrigerant: R-410A

• Oil Type: Polyol Ester (POE)

• Motor Protection: Internal

• Suction Connection: 3/4" Stub

• Discharge Connection: 1/2" Stub

• Condition: Brand New, Factory Sealed

• Application: Residential & Light Commercial HVAC Systems

The Copeland ZP29LXE-TF5-800 is part of the highly trusted Copeland ZP scroll series, known for energy efficiency, reliability, and reduced sound levels. Perfect for OEM replacements or new installations, this compressor delivers consistent performance and long service life.

Note: Always ensure proper system compatibility and professional installation for optimal performance and warranty protection.

Trust Copeland for superior HVAC solutions—engineered to perform, built to last.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.

This item is not eligible for free shipping and must be shipped via trucking. Please contact us for a freight quote.
