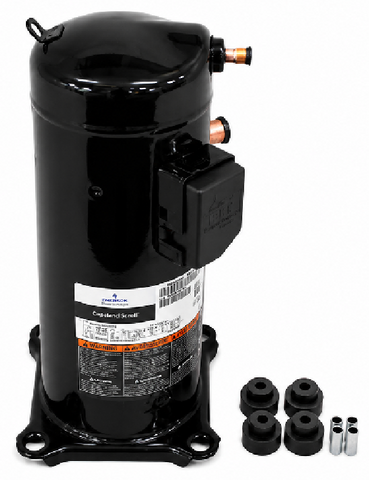

Copeland ZP83KCE-TFD-950 Compressor

The Copeland ZP83KCE-TFD-950 is a heavy-duty hermetic scroll compressor designed for high-temperature air conditioning and commercial heat pump applications. This 6.9 HP unit delivers a nominal capacity of 83,000 BTU/hr and is engineered for 460V, 3-phase power configurations at 60 Hz. As a direct ZP83KCE-TFD-522 replacement, it ensures seamless compatibility with existing rooftop units and split systems. Optimized for R-410A refrigerant, it comes pre-charged with 3.5 pints of polyol ester (POE) oil to ensure proper lubrication and system longevity. With a 10.8 EER, this compressor balances high-demand cooling with energy efficiency. Technical features include 7/8" ODF suction and 1/2" ODF discharge connections, internal inherent motor protection, and a robust 100.0 LRA rating. Built by Emerson, this model utilizes Copeland Scroll technology to minimize sound levels and vibration while maintaining 13.6 Amps RLA under peak load conditions.

Key Benefits

• Direct Drop-In Compatibility: Serves as the official cross-reference for the ZP83KCE-TFD-522, reducing field modification time.
• Enhanced System Reliability: Features internal inherent motor protection to prevent damage from overcurrent or thermal overload.
• High-Efficiency Performance: Delivers 83,000 BTU of cooling capacity with a 10.8 EER, optimized for large-scale commercial HVAC operations.
• Quiet Operation: The scroll design provides smoother compression cycles compared to reciprocating models, lowering decibel levels and vibration.

Common Questions

What oil is required for the ZP83KCE-TFD-950?
This compressor is specifically designed for R-410A systems and must use Polyol Ester (POE) oil. It comes factory-charged with 56 ounces of POE oil.

Is this model compatible with 50 Hz power?
Yes, the ZP83KCE-TFD-950 is rated for dual-frequency operation, supporting 460V at 60 Hz or 380-420V at 50 Hz for international applications.

How do the connections differ from older series?
This unit features standard sweat (ODF) connections with a 7/8" suction line and a 1/2" discharge line, following the standard Mounting Arrangement A footprint for commercial installs.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
