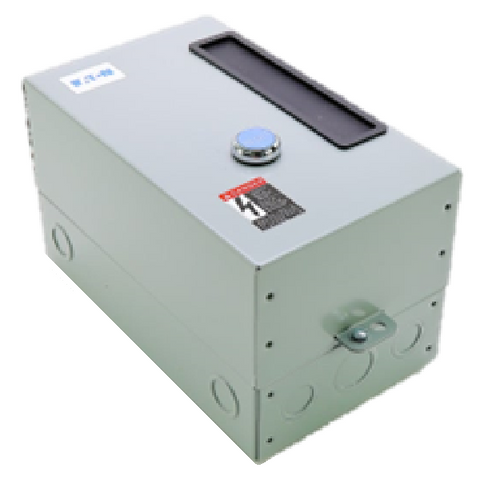

Eaton Cutler-Hammer ECN0501AAA Starter

The Eaton Cutler-Hammer ECN0501AAA is a rugged NEMA Size 0 non-reversing starter designed for reliable motor control in demanding industrial HVACR applications. Engineered for full voltage non-reversing (FVNR) operation, this unit features a 120V AC coil and is rated for a maximum current of 18A. Housed in a durable NEMA 1 enclosure, it provides essential protection for internal components against dust and debris while ensuring consistent performance in indoor environments. This across-the-line starter incorporates a three-pole configuration and is typically utilized for controlling single-phase or three-phase motors where high-torque starting is required. Its compact frame allows for efficient mounting within control panels, making it a standard choice for motor branch circuit protection and automation workflows. Contractors select the ECN0501AAA starter for its proven Freedom Series design, which integrates seamlessly with standard thermal overload relays to prevent motor burnout and ensure system longevity without frequent maintenance intervals.

• Voltage Compatibility: Equipped with a standard 120V coil, ideal for common control transformer outputs in commercial mechanical rooms.
• High Ampacity Rating: The 18A capacity supports a wide range of fractional and integral horsepower motors.
• NEMA 1 Enclosure: Provides a professional finish and essential protection for indoor HVAC motor control installations.
• Field-Proven Reliability: Part of the Eaton Freedom Series, ensuring compatibility with a wide array of heater packs and auxiliary contacts.
• Simplified Wiring: Features accessible terminals and a straightforward layout to reduce installation time for technicians.

Common Questions

What is the maximum horsepower rating for the Eaton ECN0501AAA?
The horsepower rating depends on the operational voltage; traditionally, a NEMA Size 0 starter is rated for up to 3 HP at 230V or 5 HP at 460V, but always verify specific FLA (Full Load Amps) against the motor nameplate.

Does this starter include a thermal overload relay?
The ECN0501AAA provides the base starting mechanism. Technicians must ensure the appropriate overload heater packs are sized and installed based on the specific motor's full load amperage requirements.

Can this unit be used for outdoor applications?
No, this unit is supplied in a NEMA 1 enclosure, which is designed strictly for dry, indoor use. For outdoor or wash-down environments, a NEMA 3R, 4, or 4X rated enclosure would be required.
