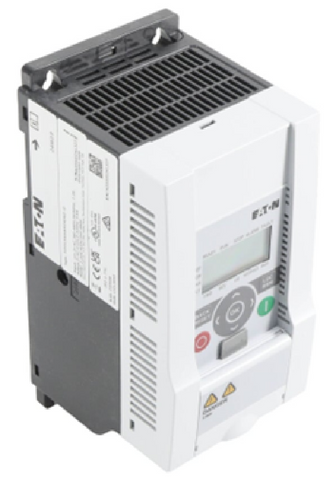

Eaton Cutler-Hammer MMX34AA5D6N0-0 VFD

The Eaton Cutler-Hammer MMX34AA5D6N0-0 is a high-performance 3HP 480V 3-Phase VFD from the robust M-Max series, engineered specifically for industrial motor control and HVAC variable frequency drive applications. This compact unit operates at a 5.6A rated output current and features a sensorless vector control algorithm, ensuring precise torque management even at low speeds. With its FS2 frame size, the MMX34AA5D6N0-0 is designed for side-by-side mounting to maximize cabinet space. It comes standard with conformal coated boards, providing essential protection against moisture and contaminants in harsh mechanical rooms. The integrated Modbus-RTU communications and a built-in startup wizard simplify commissioning for technicians, allowing for rapid parameter adjustment. This model is the "N0" variant, meaning it is supplied without an internal EMC filter, making it a direct solution for systems where external filtering is already present or not required. Use this Eaton M-Max VFD to optimize motor speed control and significantly reduce energy consumption in centrifugal pump and fan applications.

• Enhanced Durability: Standard conformal coating protects internal electronics from dust and humidity.
• Compact Integration: The FS2 frame design supports side-by-side mounting, reducing total enclosure footprint.
• Rapid Commissioning: Features a built-in startup wizard and preset macros for HVAC, pump, and fan assemblies.
• High Ambient Rating: Reliable operation in environments up to 50°C without derating.
• Versatile Communication: Integrated Modbus-RTU serial interface for seamless BMS and PLC connectivity.

Is an external filter required for the MMX34AA5D6N0-0?
Yes, as this is the "N0" non-filtered version, an external EMC filter may be necessary depending on your local interference requirements and cable lengths.

Can I use this VFD for constant torque applications?
While optimized for variable torque loads like fans and pumps, its sensorless vector capability provides the torque response needed for many standard industrial conveyors and machinery.

What software is used for advanced programming?
Technicians can utilize Eaton’s MaxConnect and MaxLoader software via the serial port for deep parameter cloning and real-time monitoring.
