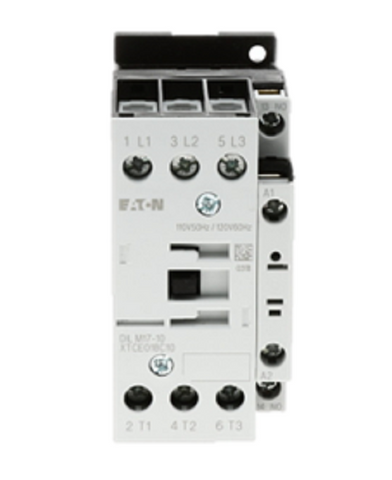

Eaton Cutler-Hammer XTCE018C10A Contactor

The Eaton Cutler-Hammer XTCE018C10A is a commercial-grade IEC magnetic contactor engineered for reliable motor control in HVACR and industrial automation systems. This 3-pole non-reversing contactor is rated for 18A AC-3 (120V to 600V) and features a 120V 60Hz / 110V 50Hz AC coil, making it a standard drop-in for diverse control circuits. Part of the XT series power control lineup, it utilizes Frame C dimensions for a compact footprint in crowded electrical enclosures. The unit comes integrated with 1N/O auxiliary contact (normally open) for signaling and status feedback. Designed to handle AC-3 inductive motor loads up to 10HP at 480V, the XTCE018C10A supports high-frequency switching operations. Its IP20 finger-safe terminals and DIN rail mounting capability ensure a secure, efficient installation for specialized technicians managing pump, fan, or compressor motor starters.

Key Technical Benefits

• High Durability: Tested for millions of mechanical operations to ensure longevity in heavy-duty motor control applications.
• Flexible Integration: Side and front-mount auxiliary contact modules can be added for complex interlocking or PLC automation feedback.
• Compact Frame C: Optimizes cabinet space while providing high amperage capacity for 18 amp contactor requirements.
• Global Compliance: Meets CE, UL, and CSA standards, ensuring compatibility with international HVAC voltage requirements.

Frequently Asked Questions

Does this contactor support 24V DC control circuits?
No, this specific model features a 110/120V AC coil. For DC control applications, the coil must be matched to the specific DC bus voltage of the system.

Can the XTCE018C10A be used with overload relays?
Yes, it is designed for seamless close-coupling with XTOB or XTOT thermal overload relays to provide complete motor protection and branch circuit safety.

What is the maximum horsepower rating at 230V?
Under standard NEMA and IEC ratings, this 18A contactor is typically rated for 5HP at 230V 3-phase power.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
