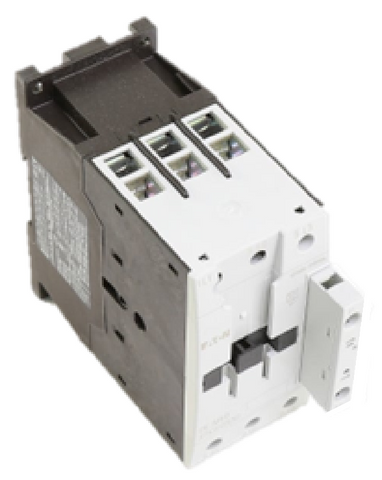

Eaton Cutler-Hammer XTCE050D00B Contactor

The Eaton Cutler-Hammer XTCE050D00B contactor is a high-performance 3-pole IEC magnetic contactor engineered for demanding motor control and industrial HVACR applications. Operating on a 220-240V AC coil (50/60 Hz), this Frame D unit delivers a continuous 50A inductive (AC-3) and 80A resistive (AC-1) rating. Designed for versatility, it supports three-phase motor loads up to 20 HP at 230V and 40 HP at 460V, ensuring reliable switching under full-voltage non-reversing (FVNR) conditions. The 55mm frame is optimized for space efficiency and is compatible with 35mm DIN rail or panel mounting. Utilizing screw terminals, it provides secure electrical connections for field-installed conductors. This industrial motor starter component meets global standards including IEC 60947, UL, and CSA, making it a drop-in replacement for Moeller DILM series units. For comprehensive system protection, it integrates seamlessly with XTOB thermal overload relays and can be expanded with front or side-mounted auxiliary contact blocks.

• High Current Capacity: Rated for 50A AC-3 applications, providing robust power handling for heavy-duty HVACR motors.
• Dual-Frequency Coil: The 220V/50Hz and 240V/60Hz coil allows for global compatibility across different power grids.
• Compact Footprint: Efficiency-focused Frame D 55mm size saves critical space in control cabinets and enclosures.
• Finger-Safe Design: Built-in IP20 protection ensures technician safety by preventing accidental contact with live terminals.
• Expansion Ready: Supports additional auxiliary contacts and surge suppressors to meet specific logic or protection requirements.

Is the XTCE050D00B compatible with Klockner Moeller DILM series?
Yes, the Eaton XT series is the direct replacement for the legacy Moeller DILM50 contactors, sharing identical footprints and electrical characteristics.

Can I mount this contactor in any orientation?
While DIN rail mounting is standard, the XTCE050D00B can be mounted on a vertical panel; however, check the manufacturer's derating curves if mounting in non-standard horizontal positions.

What is the maximum horsepower rating for this 50A contactor?
This 3-pole contactor is rated for 40 HP at 460V and 50 HP at 575V for three-phase applications.
