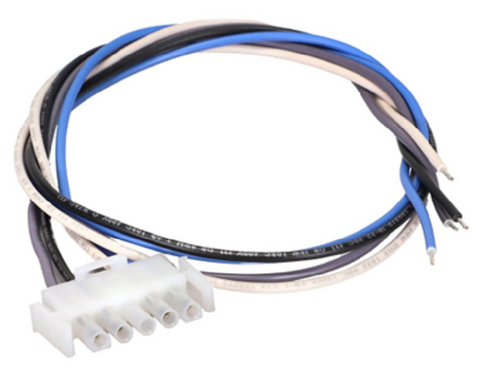

Fenwal 05-128981-024 Wiring Harness

The Fenwal 05-128981-024 Wiring Harness is a critical 5-pin connector assembly engineered for high-integrity electrical pathways in gas-fired ignition systems and industrial control modules. As an authentic OEM HVAC replacement part, this harness mate ensures seamless communication between ignition control boards and auxiliary sensors. The 5-pin configuration is purpose-built to facilitate stable power distribution and signal transmission, maintaining system uptime in demanding commercial environments. Its low-profile design allows for efficient routing within compact furnace cabinets or burner assemblies, where space is at a premium. By utilizing a high-grade 5-pin wiring harness mate, technicians can prevent common voltage drop issues and intermittent signal failure often associated with degraded or aftermarket wiring. This component is specifically matched for Fenwal series 05 ignition controls, providing a secure, vibration-resistant friction fit that simplifies field installations during routine maintenance or emergency repairs. Professional-grade materials ensure the harness maintains electrical continuity even when exposed to the thermal cycling typical of HVACR operation.

Key Benefits

• Secure Connectivity: The 5-pin friction-lock design prevents accidental disconnects due to equipment vibration or thermal expansion.
• Optimized Signal Integrity: Designed to minimize resistance, ensuring precise communication between the ignition module and flame sensors.
• Compact Footprint: Narrow profile allows for clean wire management in congested HVAC control panels.
• Universal 5-Pin Compatibility: Direct mate for Fenwal 05-128981-024 specifications, ensuring a perfect fit without field modification.
• Durable Construction: High-temperature lead insulation resists cracking and degradation in high-cycle heating environments.

Common Questions

Is this harness compatible with all Fenwal 05 series controls?
This specific 5-pin harness is designed to match the 05-128981-024 specification. Always verify the pin count and terminal configuration on your existing control board before installation to ensure a proper mate.

Can this harness be used for both power and sensing circuits?
Yes, the 5-pin configuration is commonly used to carry both 24V power and low-voltage flame sensing signals in integrated ignition systems.

What causes these wiring harnesses to fail?
Failure is typically caused by localized overheating at the terminal pins or mechanical stress from improper wire routing, which can lead to high resistance and "no-spark" ignition errors.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
