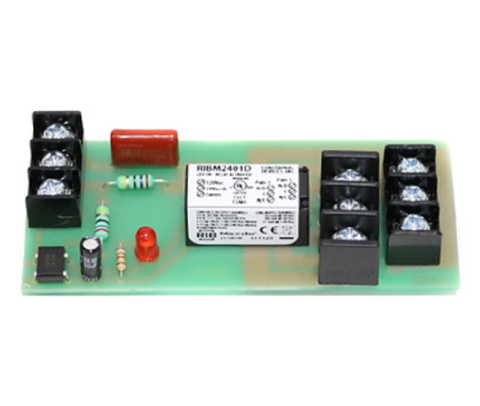

Functional Devices RIBM2401D Relay

The Functional Devices RIBM2401D is a professional-grade 10 Amp DPDT relay engineered for versatile BAS and HVACR control applications. Designed for rapid installation, this 4-inch track mount relay integrates a high-performance DPDT continuous duty coil that accepts multiple input voltages, including 24 Vac/dc and 120 Vac. The dual-pole double-throw configuration provides two independent sets of contacts, making it ideal for simultaneous switching of different loads or providing feedback signals to a controller while switching a primary load. With a mechanical life expectancy of 10 million cycles and a relay status LED for clear visual diagnostics, this unit reduces troubleshooting time in the field. Its robust construction supports an operating range of -30 to 140° F, ensuring reliability in demanding mechanical rooms. This track-mounted pilot relay is a staple for contractors requiring a compact, modular solution for 1/2 HP motor loads and resistive circuits up to 10 Amps.

• Multi-Voltage Versatility: Supports 24 Vac/dc and 120 Vac coil inputs, reducing the need to carry multiple SKUs.
• Field-Ready Diagnostics: Integrated relay status LED provides instant verification of circuit activation.
• Efficient Mounting: Specifically designed for 4-inch track mounting (MT4), allowing for high-density panel layouts.
• Robust Contact Ratings: Rated for 10 Amp resistive and 1/2 HP at 120/240 Vac, suitable for a wide range of pilot duty tasks.
• Technical Compliance: UL Listed and CE certified, meeting strict standards for safety and performance in commercial environments.

What is the maximum current this relay can handle?
The Functional Devices RIBM2401D is rated for a maximum of 10 Amps resistive at 277 Vac or 30 Vdc, and is capable of handling 1/2 HP motor loads at 120/240 Vac.

Does this unit come with the mounting track?
This model is designed to fit into a 4.00" mounting track, which is typically sold separately or integrated into existing RIB track mount systems.

Can I use this relay for both AC and DC control signals?
Yes, the DPDT pilot relay coil is designed to operate on either 24 Vac, 24 Vdc, or 120 Vac, offering excellent flexibility for different control platforms.
