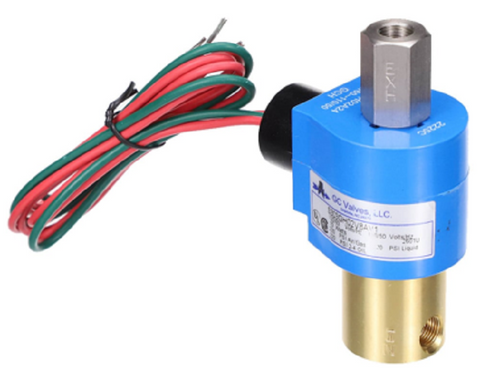

GC Valves S303GH02V8AV1 Solenoid Valve

The GC Valves S303GH02V8AV1 Solenoid Valve is a compact 3-way valve designed for electrically controlled fluid and gas routing in compatible HVACR, pneumatic, process-control, and industrial equipment.

This model features a 1/8-inch NPT connection, brass valve body, and Viton sealing material. The electrical configuration is 120V, with a pressure rating up to 220 PSI.

The 3-way configuration allows the valve to switch flow paths when energized or de-energized according to the equipment's control sequence.

For replacement applications, match the complete S303GH02V8AV1 part number rather than selecting a valve based only on port size or coil voltage. Before installation, verify the piping configuration, operating pressure, electrical supply, operating media, seal compatibility, and required flow function.

Key Benefits

• GC Valves part number S303GH02V8AV1
• 3-way solenoid valve
• 1/8-inch NPT connection
• 120V electrical configuration
• Pressure rating up to 220 PSI
• Brass valve body
• Viton sealing material
• Designed for electrically controlled flow switching in compatible systems

Common Question

Can the GC Valves S303GH02V8AV1 replace another 1/8-inch 120V solenoid valve?

Not necessarily. A proper replacement must match more than the connection size and voltage. Verify the complete valve part number, 3-way flow configuration, pressure requirements, piping connections, coil voltage, operating media, and seal compatibility before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

S303GH02V8AV1 is the cross for S303GF02V8AV1
