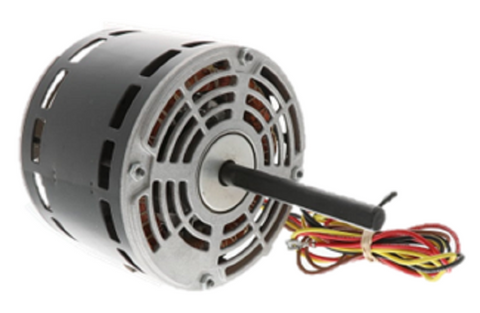

Heil Quaker ICP 1055083 Motor

The Heil Quaker ICP 1055083 Motor is a heavy-duty 1/5 HP blower motor engineered for high-static residential and light commercial HVAC applications. Operating at 230Vac with a 1.3 Amp draw, this 2-speed motor provides the torque necessary for consistent airflow across a range of ICP heating and cooling systems. Built on a standard 48 NEMA Frame, it utilizes a Permanent Split Capacitor (PSC) design to maintain electrical efficiency and lower operating costs for your clients.

This 990 RPM blower motor features a durable sleeve bearing system and a CCW (Counter-Clockwise) rotation (lead end), making it a direct drop-in replacement for standard Heil Quaker blower assemblies. The 48-frame housing is equipped for band mounting, ensuring a secure, vibration-resistant fit during installation. For technicians performing a swap-out, this dual-speed HVAC motor offers the versatility needed to meet original equipment manufacturer airflow specifications while maintaining system balance.

Key Benefits

• Broad Compatibility: Replaces common ICP, Heil, and Tempstar part numbers including 1056342 and 713570.
• Optimized Efficiency: The Permanent Split Capacitor design reduces energy consumption compared to older shaded-pole alternatives.
• Technician-Ready Design: Standard NEMA 48 frame and 1/2-inch shaft diameter ensure a direct fit without field modifications.
• Multi-Speed Versatility: 2-speed operation allows for fine-tuning CFM requirements based on the specific furnace or air handler model.

Common Questions

What capacitor is required for this motor?
This motor typically requires a 5 MFD / 370V run capacitor for proper startup and operational efficiency. Always check the original schematic as capacitor requirements can vary by application.

Can I use this motor if my original has a different rotation?
No, this motor is specifically CCW rotation. Attempting to reverse a non-reversible PSC motor like the 1055083 can lead to overheating and mechanical failure of the blower wheel.

Is this a direct replacement for 208V systems?
While rated for 230V, many Heil Quaker 1055083 motors are compatible with 208-230V ranges. Verify the specific amperage draw (FLA) on the nameplate to ensure it matches your current power supply.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
