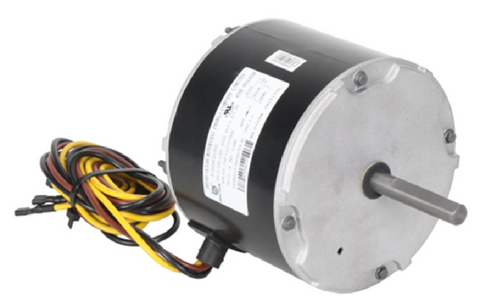

Heil Quaker ICP 1203316 Motor

The Heil Quaker ICP 1203316 Motor is a high-reliability, 1/8 HP original equipment manufacturer (OEM) replacement designed specifically for heavy-duty HVACR applications. As a direct cross-reference for part 1173699, this single-phase (1PH), 208-230V motor operates at 825 RPM, delivering the precise torque and thermal protection required for ICP condenser fan assemblies and blower units. Built to a NEMA 48 frame size with a 1/2-inch shaft diameter and sleeve bearings, it ensures a drop-in fit for popular models across the Heil, Tempstar, Comfortmaker, and Arcoaire product lines. The counter-clockwise (CCW) rotation and 0.90 FLA rating are engineered for maximum efficiency, helping contractors minimize system vibration and prevent premature component failure in both residential and light commercial equipment.

• Direct OEM Replacement: Eliminates mounting headaches with an exact fit for ICP 1203316 and 1173699 parts.
• High-Efficiency Performance: Specifically tuned 825 RPM speed maintains factory-standard airflow and static pressure.
• Rugged Construction: Features sleeve bearings and a permanent split capacitor (PSC) design for extended service cycles.
• Versatile Compatibility: Trusted for use in condenser fan motors and small blower applications across multiple International Comfort Products brands.
• Optimized Power Draw: Low-amp 0.90 FLA operation reduces electrical stress on existing control boards and contactors.

Does this motor replace the ICP 1173699?
Yes, the 1203316 motor is the direct engineering cross-reference for the 1173699, sharing identical electrical specs and physical dimensions.

Which capacitor should be used with this motor?
For optimal performance and to prevent overheating, it is best practice to install a new 5 MFD / 370V capacitor during replacement.

What equipment brands is this compatible with?
This motor is fully compatible with units from Heil, Quaker, Tempstar, Arcoaire, Comfortmaker, and other brands manufactured by International Comfort Products.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
