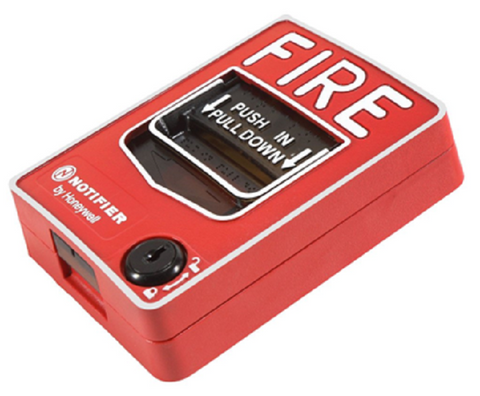

Honeywell NBG-12LX Pull Station

Addressable Manual Pull Station, 24 Vdc Operating Voltage, 28 Vdc Maximum SLC Loop Voltage, 5 mA Maximum SLC Alarm Current, 32-120 Degree Temperature Range, 10-93 % Non Condensing Humidity Range

Honeywell NBG-12LX Addressable Manual Pull Station – Dual-Action, 24 Vdc, Fire Alarm Control

The Honeywell NBG-12LX Pull Station is a state-of-the-art, addressable manual pull station designed for intelligent fire alarm systems. Featuring a dual-action mechanism that requires two motions to activate, this pull station enhances safety while minimizing false alarms. Compatible with most Notifier control panels (except FireWarden series and NSP-25), the NBG-12LX provides precise location reporting, allowing fire personnel to quickly respond to alarms.

Key Features & Benefits:

• Addressable Technology: Pinpoints the exact location of the activated station on the control panel for faster emergency response.

• Dual-Action Design: Smooth, two-step operation reduces accidental activations.

• Built-in Bicolor LED: Flashes green during normal operation and latches red when in alarm, visible through the station handle.

• Easy Inspection & Address Setting: Can be opened without triggering an alarm for maintenance.

• Durable & ADA Compliant: Meets ADAAG requirements with a maximum activation force of 5 lb. and includes Braille on the handle.

• Versatile Mounting Options: Surface mount with SB-10 or SB-I/O backbox, or semi-flush mount on standard electrical boxes.

• High Visibility & Ergonomic Design: Textured finish, attractive shape, and handle latch that shows “ACTIVATED” after use.

• Wire-Ready Installation: Captive screw terminals accommodate up to 12 AWG (3.25 mm²) wire for fast and secure SLC loop connection.

• Expandable System Compatibility: Supports up to 99 stations per CLIP loop or 159 stations per FlashScan® loop.

Specifications:

• Operating Voltage: 24 Vdc nominal, 28 Vdc maximum SLC loop voltage

• Maximum SLC Alarm Current: 5 mA

• Temperature Range: 32–120°F (0–49°C)

• Humidity Range: 10–93% non-condensing

• Protocols Supported: CLIP and FlashScan®

• Reset Type: Key reset

• Optional Accessories: BG12TR trim ring

• Certifications: UL/ULC Listed, MEA, CSFM, FDNY COA, BSMI, U.S. Coast Guard, Lloyd’s Register, FM Approved

• Patented Design: U.S. Patents D428,351; 6,380,846; 6,314,772; 6,632,108

Applications:
Ideal for commercial, industrial, and residential fire alarm systems where addressable notification and quick emergency response are critical. Perfect for schools, office buildings, hospitals, and any facility requiring compliant, high-performance fire safety solutions.

Enhance your fire safety system with the Honeywell NBG-12LX Pull Station—engineered for reliability, precision, and rapid emergency response.
