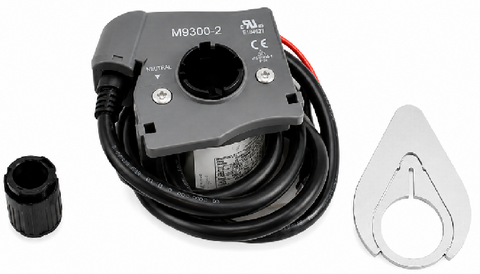

Johnson Controls M9300-2 External Auxiliary Switch Kit

The Johnson Controls M9300-2 External Auxiliary Switch Kit is a field-installed actuator accessory designed to add two single-pole, double-throw (SPDT) auxiliary switches to compatible Johnson Controls M9300-series actuator applications.

Each switch is rated at 3 (0.5) A at 240 VAC, providing auxiliary position signaling or control functions based on actuator position. The M9300-2 is a two-SPDT auxiliary switch kit intended for compatible M9300-series actuator configurations.

The assembly includes a conduit adapter and plastic pointer for proper installation and position indication. Electrical connections use a 55-inch (1.4 m) halogen-free cable with six 18 AWG conductors and ferrule ends. The enclosure is rated NEMA 5 / IP54.

For replacement or retrofit applications, verify the exact actuator model before ordering to ensure proper mechanical and electrical compatibility.

Key Benefits

• Johnson Controls M9300-2 auxiliary switch kit for compatible M9300-series actuators
• Includes two SPDT auxiliary switches
• Switch rating: 3 (0.5) A at 240 VAC
• Includes conduit adapter and plastic position pointer
• 55-inch halogen-free cable with six 18 AWG conductors
• NEMA 5 / IP54 enclosure rating
• Provides auxiliary actuator position switching for HVAC control applications

Common Questions

What is the Johnson Controls M9300-2 used for?
It adds two SPDT auxiliary switches to compatible Johnson Controls electric actuators, allowing external equipment or control circuits to respond to actuator position.

How many switches are included?
The M9300-2 includes two SPDT auxiliary switches.

What is the switch rating?
The switch rating is 3 (0.5) A at 240 VAC.

Does the M9300-2 include installation accessories?
Yes. The kit includes a conduit adapter and plastic pointer.

Will the M9300-2 work with every Johnson Controls actuator?
No. Verify the exact actuator model and application before ordering. The M9300-2 is intended for compatible M9300-series actuator configurations.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
