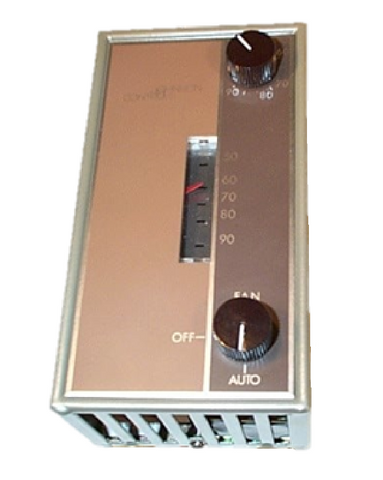

Johnson Controls T22BBC-1 Thermostat

The Johnson Controls T22BBC-1 is a professional-grade line voltage wall thermostat designed specifically for heating-only applications in demanding environments. This mechanical SPST thermostat provides reliable control for 120V, 208V, or 240V systems without the need for heat anticipators. Engineered for performance in unit heaters, fan coils, and electric duct furnaces, the T22BBC-1 features a rugged steel cover with a "Tawny Silver" baked enamel finish and a distinct Auto-Off-Fan selector switch. With a fixed 3 degree differential and a 40 to 90 degree temperature range, this unit ensures stable operation by reducing short-cycling in greenhouses, blast coils, and cold storage areas. Built as a standard medium duty heating thermostat, it offers a liquid-charged sensing element that reacts quickly to ambient air changes, providing accurate mechanical temperature regulation that veteran contractors trust for both residential and industrial heating application retrofits.

Key Benefits for Contractors

• Universal Voltage Compatibility: Hardwired design supports 120V to 240V circuits, making it a versatile line voltage heating thermostat for various commercial job sites.
• Integrated Selector Switch: Features a built-in Auto-Off-Fan switch, eliminating the need for separate subbases and simplifying the thermostat wiring procedure.
• Rugged Industrial Construction: The Johnson Controls T22BBC-1C (equivalent to T22BBC-1) utilizes a durable steel enclosure and high-impact internal components suitable for greenhouses and warehouses.
• Precision Sensing: Employs a liquid-filled element and high-efficiency diaphragm to maintain a tight temperature differential without the complexity of modern digital electronics.
• Adjustable Dial Stops: Includes concealed high-temperature stop adjustments to prevent unauthorized setpoint tampting in public or commercial spaces.

Common Questions

What systems are compatible with the T22BBC-1?
This SPST medium duty thermostat is designed for heat-only systems, including electric baseboards, unit heaters, and duct furnaces. It is not compatible with cooling-only or heat pump systems requiring a reversing valve signal.

Can this thermostat be mounted in any orientation?
To achieve the most accurate 3 degree differential and ensure optimal airflow over the sensing element, the T22BBC-1 must be installed in a vertical wall mount position using a standard 2x3 inch outlet box.

Does this model require a neutral wire?
As a mechanical line voltage thermostat, it breaks the "hot" leg of the power supply. Always follow the T22BBC-1 wiring diagram and local electrical codes; typically, it is installed in series with the load.

What is the difference between T22BBC-1 and T22BBC-1C?
The Johnson Controls T22BBC-1 is functionally identical to the T22BBC-1C; the "C" suffix often denotes commercial packaging or minor regional SKU variations while maintaining the exact same technical specifications and 40-90°F range.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
