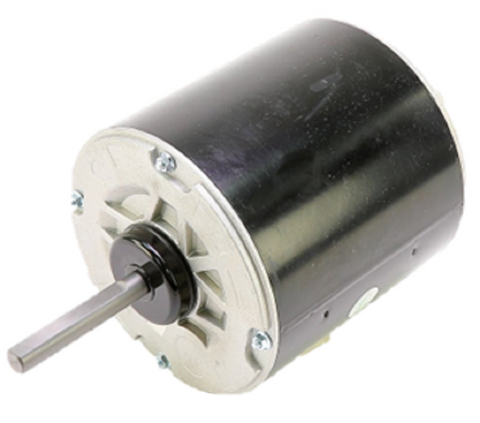

Lennox 14Y65 Motor

The Lennox 14Y65 Motor is a high-performance direct replacement condenser fan motor engineered for precision in Lennox and Allied commercial and residential rooftop units. As a high-torque 1/3 HP motor running at 1075 RPM, this 48-frame unit is built for vertical mounting in demanding outdoor environments. Utilizing Permanent Split Capacitor (PSC) technology, it maintains consistent efficiency under high-static conditions while drawing 1.65 Amps. The CCWLE rotation (Counter-Clockwise from Lead End) and 1/2-inch by 3.4-inch shaft ensure a seamless mechanical fit when replacing old units. Field techs should note that this motor serves as the drop-in OEM motor replacement for several legacy part numbers, providing a reliable solution for restoring system heat exchange capacity. To ensure longevity and prevent electrical stress on the new windings, we recommend pairing this replacement with a fresh 10 MFD 370V capacitor during installation.

• Universal Compatibility: Serves as the precise drop-in Lennox 79J81 replacement and replaces part number 14Y6501, eliminating field modifications.
• Enhanced Durability: Features heavy-duty ball bearings and thermal protection to withstand continuous duty cycles in extreme ambient temperatures.
• Optimized Performance: Operates at a stable 208-230V, providing the exact CFM required for proper condenser coil cooling and head pressure management.
• Easy Installation: Standard 48-frame diameter with a vertical-up/down mounting design fits most belly-band or stud-mount configurations.

• What does CCWLE rotation mean for this motor? This unit rotates counter-clockwise when viewed from the lead end (the side opposite the shaft), which is the standard configuration for many Lennox residential and commercial condenser fan blades.
• Which capacitor is required for the Lennox 14Y65? This motor requires a 10 MFD / 370 VAC run capacitor to ensure proper starting torque and amp draw.
• Can I use this motor to replace a 79J81? Yes, the 14Y65 is the direct manufacturer-recommended transition part for the 79J81 and 104607-01 models.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
