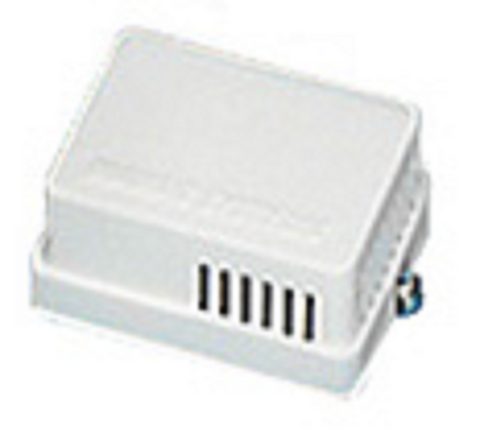

MAMAC Systems TE-205-M-12 Temperature Sensor

MAMAC Systems TE-205-M-12 Temperature Sensor – 10K Type II Thermistor, Micro Enclosure

The MAMAC Systems TE-205-M-12 is a precision-engineered space temperature sensor featuring a 10K Type II NTC thermistor housed in a compact micro enclosure. Designed for versatility and accuracy, this sensor delivers reliable temperature readings across a wide range of applications, including classrooms, offices, duct systems, washdown areas, and outdoor air monitoring (OSA).

Key Features:

• Model: TE-205-M-12

• Sensor Type: 10K Ohm NTC Thermistor, Type II

• Temperature Range: -40°F to 210°F (-40°C to 100°C)

• Accuracy: ±0.36°F (±0.2°C) for thermistor

• Output Signal: Resistance-based

• Mounting Options: Direct wall mount or with BKT-1 bracket for single gang box

• Enclosure: Vented white plastic housing with aluminum base plate

• Wiring Termination: 4.5" (13 cm) of 22 AWG pigtails

• Weight: 0.2 lb (0.1 kg)

• Certifications: CE, RoHS compliant

• Warranty: 1 Year

Applications:

• Room and office temperature monitoring

• Classroom environmental control

• Duct and immersion temperature sensing

• Outdoor air temperature (OSA) measurement

• Washdown and rugged environment compatibility

Benefits:

• Fast response time thanks to vented housing

• High accuracy for reliable climate control

• Wide compatibility with building automation systems

• Simple installation with flexible mounting options

• Durable and compact for long-term use in various environments

Trust the MAMAC TE-205-M-12 for accurate, dependable temperature sensing in commercial, industrial, and residential HVAC applications.
