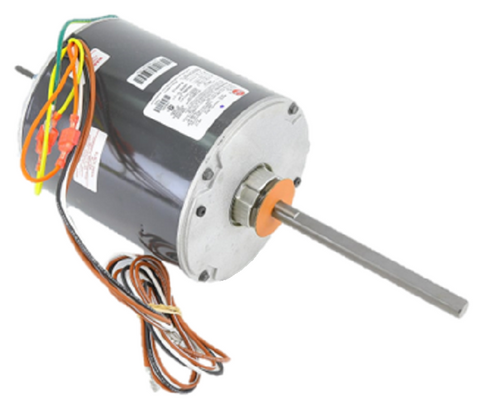

Nidec-US Motors 1882 Motor

The Nidec-US Motors 1882 condenser fan motor is a 1/2 HP HVAC motor engineered for reliable operation in condenser and air-moving applications. Designed for 460V single-phase power, this 825 RPM condenser motor delivers steady airflow performance for commercial HVAC systems. Built with a 48Y NEMA frame and totally enclosed air over (TEAO) enclosure, it is well-suited for outdoor condenser units where protection from contaminants and efficient cooling are required. The permanent split capacitor (PSC) design ensures consistent torque and energy-efficient operation, while ball bearings support long-term durability under continuous duty conditions. Featuring a 1/2-inch shaft, reversible rotation, and flexible stud or band mounting, this motor is a solid choice for replacement or retrofit in compatible condenser fan assemblies.

Key Benefits:

• 1/2 HP motor rated for 460V single-phase operation
• 825 RPM speed for consistent condenser airflow
• 48Y NEMA frame with 1/2-inch shaft size
• TEAO enclosure for protection in outdoor environments
• Ball bearing construction with reversible rotation

Common Questions:

Q: What type of applications is this motor used for?
A: It is commonly used in condenser fan applications for commercial HVAC systems.

Q: Is this motor suitable for outdoor use?
A: Yes, the totally enclosed air over (TEAO) design is built for outdoor condenser environments.

Q: Can the rotation direction be changed?
A: Yes, this motor supports reversible rotation for installation flexibility.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

1882 is the cross of D920.
