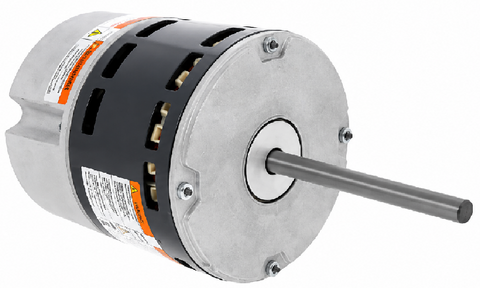

Nidec-US Motors 5632 Motor
The Nidec-US Motors 5632 RESCUE EZ13 is a constant-torque ECM blower motor designed for compatible residential and light commercial HVAC furnaces and air handlers. Featuring 115/208–230V operation and 1/2 HP and 1/3 HP ratings, this replacement motor provides an option for servicing compatible HVAC blower assemblies.
The Nidec 5632 ECM motor uses electronically commutated motor technology to provide variable-speed operation and constant-torque performance. Its 1075 RPM maximum rated speed and 24 VAC control tap inputs support integration with compatible HVAC control systems.
Equipped with automatic rotation sensing, the motor helps simplify replacement by determining the required direction of rotation during setup. Its NEMA 48 frame and belly-band mounting configuration accommodate applicable blower assemblies.
This RESCUE EZ13 replacement blower motor is intended for HVAC technicians replacing failed or malfunctioning blower motors. Before installation, verify the original motor's horsepower, voltage, speed, control wiring, mounting dimensions, and equipment compatibility.
Key Benefits
-
Manufacturer: Nidec-US Motors
-
Part Number: 5632
-
Product Series: RESCUE EZ13
-
Motor Type: Constant-Torque ECM Blower Motor
-
Horsepower: 1/2 HP / 1/3 HP
-
Voltage: 115/208–230V
-
Phase: Single Phase
-
Frequency: 50/60 Hz
-
Maximum Rated Speed: 1075 RPM
-
Frame Size: NEMA 48
-
Control Inputs: 24 VAC Tap Inputs
-
Rotation: Automatic Rotation Sensing
-
Enclosure: Open Air Over (OAO)
-
Mounting: Belly Band
-
Rated Current: 6.3A at 115V; 4.0–3.8A at 208–230V
-
Provides constant-torque ECM operation for compatible HVAC blower applications.
-
Supports variable-speed airflow operation through compatible controls.
-
Automatic rotation sensing simplifies motor setup.
-
Designed for professional HVAC maintenance and blower motor replacement.
Common Questions
Q: What is the Nidec-US Motors 5632 used for?
A: The Nidec 5632 RESCUE EZ13 is a constant-torque ECM blower motor designed for compatible HVAC furnaces and air handlers. It is used to replace applicable blower motors that have failed or are no longer operating correctly.
Q: What voltage does the Nidec 5632 motor support?
A: The motor supports 115V and 208–230V single-phase electrical applications. The wiring configuration must match the available power supply and manufacturer instructions.
Q: What horsepower ratings does the Nidec 5632 provide?
A: The motor is identified with 1/2 HP and 1/3 HP ratings. Verify the appropriate application and operating configuration before installation.
Q: Is the Nidec 5632 a PSC or ECM motor?
A: The Nidec 5632 is a constant-torque electronically commutated motor (ECM), not a conventional permanent split capacitor (PSC) motor.
Q: Does the Nidec 5632 require an external run capacitor?
A: As an ECM motor, it does not use the conventional external run capacitor associated with PSC blower motors.
Q: Does the Nidec 5632 automatically determine motor rotation?
A: Yes. The RESCUE EZ13 motor incorporates automatic rotation sensing. Installation and startup must still follow the manufacturer's instructions.
Q: What is the maximum rated speed of the Nidec 5632?
A: The motor has a maximum rated speed of 1075 RPM, with operating speed determined by its control configuration and application.
Q: Can the Nidec 5632 replace any 1/2 HP or 1/3 HP blower motor?
A: No. Compatibility depends on motor technology, horsepower, voltage, speed, control signals, frame dimensions, mounting arrangement, and the original equipment requirements. Confirm compatibility before purchasing.
Disclaimer
While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
5632 is the cross for HD44AE235
