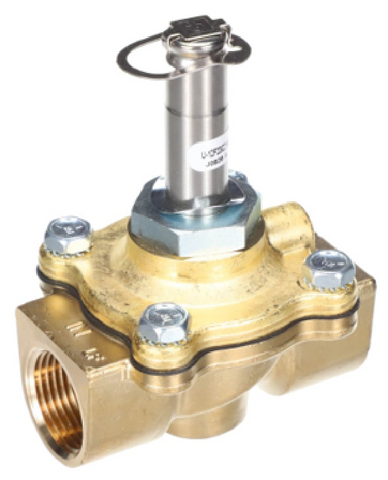

Parker Fluid Control 12F23C2148ACF Valve

The Parker Fluid Control 12F23C2148ACF is a heavy-duty, 2-way normally closed solenoid valve designed for reliable flow control in demanding HVACR and industrial fluid systems. Built with a rugged forged brass body, this unit features a 3/4 inch NPT connection and a diaphragm hung internal pilot-operated design that ensures consistent performance across a variety of media, including lubricated air, inert gases, water, and light oils. With a flow coefficient (5.0 Cv) and a maximum operating pressure differential of 150 PSI, this Parker Gold Ring valve is engineered for high-flow capacity without sacrificing tight shut-off integrity. The NBR (Nitrile) seals are rated for media temperatures up to 180°F, making it a versatile choice for standard temperature applications. This direct lift actuation valve is a reliable solution for technicians requiring a "zero differential" capable valve that handles medium-to-high pressure drops effectively in the field.

Key Benefits

• High Flow Efficiency: The 5.0 Cv rating provides superior throughput for 3/4" line sizes, reducing pressure drop across the valve.
• Versatile Media Handling: Compatible with air, water, and light oil, making it a versatile "truck stock" part for various commercial service calls.
• Zero Differential Operation: The diaphragm hung design allows the valve to open and close reliably even at 0 PSI pressure differential.
• Rugged Construction: Forged brass housing and NBR seals offer long-term durability in high-cycle industrial environments.

Common Questions

What media can be used with the Parker Fluid Control 12F23C2148ACF?
This valve is designed for general purpose use with air, inert gases, water, and light oils (up to 300 SSU). Avoid using with corrosive fluids or steam unless specified by a technician using compatible seal materials.

Does this valve require a minimum pressure to operate?
No, this specific model is an internal pilot-operated, hung diaphragm valve, meaning it can operate at a differential pressure as low as 0 PSI.

What is the temperature limit for the fluid?
The standard NBR seals in this Parker brass valve are rated for a maximum media temperature of 180°F (82°C).

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
