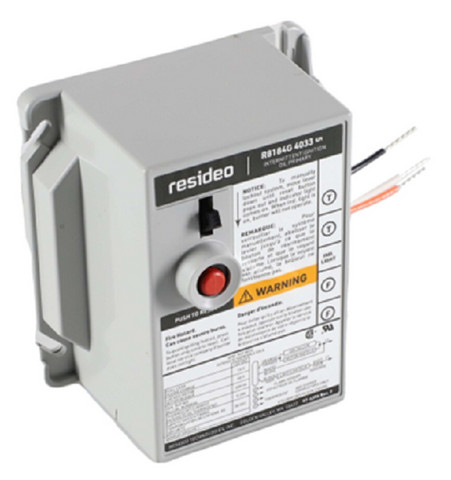

Resideo R8184G4033 Oil Burner Control – OEM Protectorelay
The Resideo R8184G4033 Control is a genuine OEM protectorelay designed for precise, reliable operation of intermittent ignition oil burner systems. Engineered to manage oil burners, oil valves, and ignition transformers, this control ensures safe and efficient heating system operation with advanced features for both performance and safety.
With a 30-second safety switch timing, LED lockout indication, and manual trip lever for service shutdown, the R8184G4033 offers robust protection and user-friendly maintenance. It provides automatic, non-recycling control of your oil burner system, making it a trusted choice for residential and commercial applications.
Key Features & Benefits:
-
OEM Resideo/Honeywell oil burner control (Protectorelay)
-
Part Number: R8184G4033
-
Controls oil burner, oil valve, and ignition transformer in response to a call for heat
-
Solid-state flame sensing circuit for reliable operation
-
LED indicator on terminal strip for system lockout (some models)
-
Remote lockout indication available (on select models)
-
Enclosed safety switch with external reset button
-
Manual trip lever for safe system servicing
-
Mounts on standard 4 x 4 in. junction box; select models mount directly on burner housing
-
Full load contact ratings: 7.4 Amp @ 120V AC, 3.7 Amp @ 240V AC
-
Locked rotor contact ratings: 44.4 Amp @ 120V AC, 22.2 Amp @ 240V AC
-
Pilot duty alarm load ratings: 75 VA @ 120/240V AC, 25 VA @ 24V AC
-
Resistive alarm load ratings: 1.5 Amp
Requirements:
-
C554A Cadmium Sulfide Flame Detector and 24V thermostat required for operation
Compatibility:
-
Designed for intermittent ignition oil burner systems (verify model compatibility prior to ordering)
Choose the Resideo R8184G4033 Oil Burner Control for a reliable, OEM-quality solution that ensures safe, efficient, and precise operation of your oil heating system across all selling platforms.
