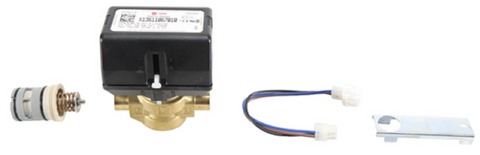

Resideo VC6930AA1132 Valve Body

The Resideo VC6930AA1132 is a high-performance 1/2-inch sweat two-way valve body specifically engineered for modern hydronic and HVAC control systems. Featuring a balanced design, this cartridge cage valve is a staple for veteran technicians managing fan coil units, air handlers, and residential zoning applications. With a 3.2 CV flow coefficient, it provides precise water flow regulation for both hot and chilled water loops, ensuring stable thermal performance and efficient system balancing. The cartridge-style internals allow for port sealing that is independent of differential pressure, significantly reducing the risk of water hammer and providing silent operation. Constructed from dezincification-resistant cast bronze with a stainless steel stem, this valve body is designed to drop into existing hydronic piping footprints, often serving as a technical equivalent for legacy V8043 series installations. Its sweat connection ensures a leak-free, permanent copper-to-valve bond essential for high-pressure zoning and terminal unit applications.

• High 3.2 CV Flow Rating: Optimized for standard residential and light commercial hydronic circuits and terminal units.
• Balanced Cartridge Design: Minimizes water hammer and maintains tight shut-off regardless of system differential pressure.
• Field Serviceable: Replaceable characterized cartridge assembly allows for maintenance without cutting into the pipe.
• Superior Construction: Cast bronze body and stainless steel stem provide long-term durability in closed-loop hydronic systems.
• Actuator Compatibility: Bayonet-mount design allows for the quick installation of 24V VC-series actuators after soldering is complete.

• What type of control signals does this valve body support? It is designed to work with VC-series actuators, supporting on-off or modulating floating control based on your 24V control signal.
• Can I use this for both heating and cooling? Yes, the Resideo VC6930AA1132 is rated for both hot and chilled water applications in HVAC and hydronic systems.
• Does it require a specific installation orientation? While the actuator can be oriented in four positions, the valve body itself can handle bi-directional flow, providing maximum flexibility in tight mechanical rooms.
