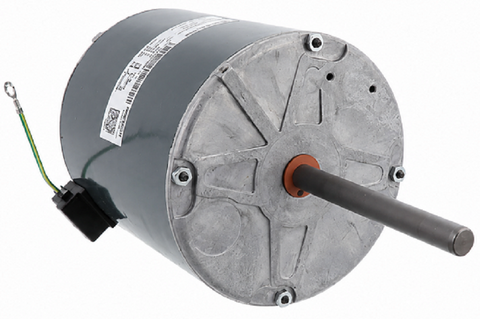

Rheem-Ruud 51-42534-14 Motor

The Rheem-Ruud 51-42534-14 condenser motor is an OEM replacement motor built for Rheem and Ruud outdoor condensing equipment that uses a 1/2 HP, single-phase, 1075 RPM condenser fan motor. This motor is rated for 380-415/460 VAC applications and is designed for 50/60 Hz service, making it suitable for specified commercial HVAC units requiring the higher-voltage motor configuration. It uses a permanent split capacitor (PSC) design with ball bearings, a 48 NEMA frame, shell-band mounting, CCW rotation, and a 1/2" x 4-7/16" shaft. For contractors replacing a failed Rheem condenser fan motor, always verify the full model number, voltage, rotation, shaft size, mounting style, and capacitor requirements before installation. A damaged or unbalanced fan blade should also be inspected before replacing the motor to help prevent vibration and premature motor failure.

Key Benefits:

• OEM Rheem-Ruud 51-42534-14 condenser fan motor
• 1/2 HP, single-phase, 1-speed operation
• 380-415/460 VAC, 1075 RPM performance
• 48 NEMA frame with shell-band mounting
• Ball bearing construction for dependable operation
• Permanent split capacitor (PSC) motor with CCW rotation
• 1/2" x 4-7/16" shaft for compatible applications

Common Questions:

Is the 51-42534-14 a condenser fan motor?
Yes. It is an OEM condenser fan motor designed for compatible Rheem and Ruud outdoor condensing units.

What voltage does this motor require?
It is rated for 380-415/460 VAC single-phase applications. Always verify the unit nameplate before ordering.

What should I verify before installation?
Confirm the motor's horsepower, voltage, RPM, rotation, frame size, shaft dimensions, mounting method, and capacitor requirements. Also inspect the fan blade for damage or imbalance.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
