Rheem-Ruud AE-64401-10 Blower Cut-Off

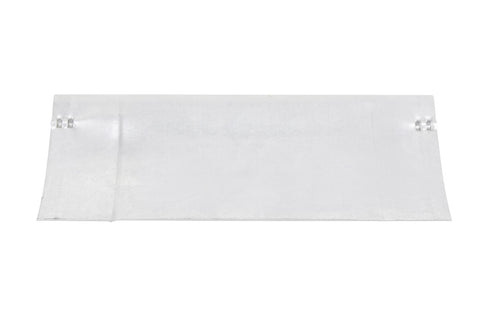

The Rheem-Ruud AE-64401-10 Blower Cut-Off is a formed sheet-metal plate with a hinge-style tab at each end, listed for RGBA-series Rheem and Ruud gas furnaces. In a blower housing the cut-off sits close to the blower wheel and separates the discharge side from the intake side, so the air the wheel throws is pushed out to the supply plenum and the ducts instead of circling back around inside the housing.

It is easy to overlook, but this is a part that matters. A bent, shifted, or missing cut-off shows up as lost airflow, extra blower noise, whistling or rumbling at the blower, and a furnace that moves less air than its rating — which then shows up downstream as high temperature rise, limit trips, and comfort complaints. Because the AE-64401-10 is the OEM piece for the RGBA series, you get the original shape, the original tab positions, and the original clearance to the blower wheel instead of a piece of sheet metal bent to look close. Rheem also lists other dash numbers such as AE-64401-06, which are separate part numbers, so order by the exact AE-64401-10 number on your original.

Replacement is a short job, but do it properly. Disconnect power, and before you remove the old cut-off, note its orientation and mounting position and take a photo. Fit the new plate the same way, confirm it is seated fully with no gaps along the housing, and spin the blower wheel by hand to make sure nothing rubs. Then run the furnace through a heating cycle and listen for the noise to be gone and the airflow to be right at the registers.

Key Benefits

• OEM Shape and Fit: Formed to Rheem-Ruud specification for the RGBA series, with the end tabs already in place.
• Restores Airflow: Brings back the intake-to-discharge separation the blower housing was designed to have.
• Quieter Operation: A correctly seated cut-off helps cut down on the blower noise a damaged one can cause.
• Small Part, Big Fix: A small AE-64401-10 part that can save you from replacing a much larger blower assembly.

Common Questions

• What furnace is this listed for? The Rheem-Ruud RGBA series. Check your furnace's model number against AE-64401-10 before ordering.
• What does a blower cut-off do? It separates the discharge side from the intake side of the blower housing so the blower wheel moves air to the ducts instead of recirculating it.
• What are signs the cut-off is damaged? Reduced airflow, unusual blower noise, a high temperature rise, or visible bending or movement near the blower wheel.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
