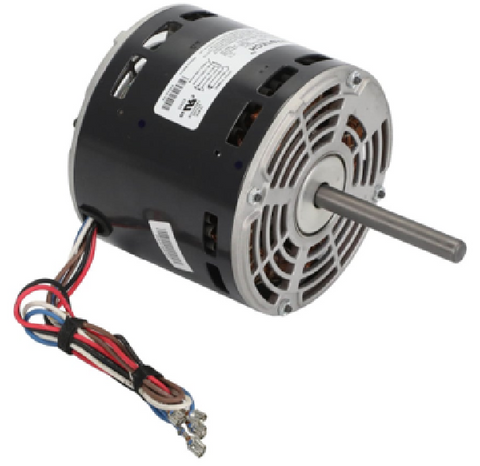

Rheem-Ruud PD515142 Motor

The Rheem-Ruud PD515142 Blower Motor is an OEM direct-drive indoor blower motor designed for compatible Rheem and Ruud HVAC equipment. Rated at 1/2 HP, 120V, and 1075 RPM, this motor provides three operating speeds for proper airflow setup in compatible furnace and air-handler blower assemblies.

The PD515142 uses a 48-frame configuration with an approximately 5-5/8-inch motor diameter. Published specifications identify sleeve-bearing construction and CCW rotation. This motor is designed for direct-drive blower applications where the motor directly drives the blower wheel.

When replacing an existing blower motor, verify the equipment model and serial number, original motor part number, horsepower, voltage, RPM, rotation, speed taps, mounting configuration, shaft dimensions, amperage, and capacitor requirements. Matching horsepower and voltage alone does not establish compatibility.

Key Benefits

• Rheem-Ruud PD515142 Blower Motor
• 1/2 HP
• 120V
• 1075 RPM
• 3-speed operation
• 48-frame configuration
• Approximately 5-5/8-inch motor diameter
• Published specifications indicate CCW rotation
• Sleeve-bearing construction
• Direct-drive indoor blower application
• Designed for compatible Rheem and Ruud HVAC systems

Common Questions

What are the specifications of the Rheem-Ruud PD515142?
The PD515142 is a 1/2 HP, 120V, 1075 RPM, three-speed, 48-frame blower motor.

What type of motor is the PD515142?
It is an OEM direct-drive indoor blower motor used in compatible heating and air-conditioning equipment.

Is the PD515142 a three-speed motor?
Yes. The PD515142 is identified as a three-speed blower motor with a rated speed of 1075 RPM.

What rotation does the PD515142 use?
Published specifications identify the motor with CCW rotation. Confirm rotation against the existing motor and equipment specifications before installation.

Can the PD515142 replace any 1/2 HP 120V blower motor?
Not automatically. Verify RPM, rotation, speed taps, frame size, mounting configuration, shaft dimensions, amperage, capacitor requirements, and equipment compatibility before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

PD515142 is the cross for 51-22858-01, 51-102994-02
