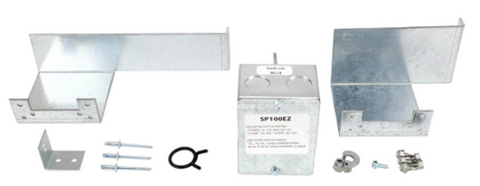

The Ruskin SP100FK is a field-installation damper position indicator switch kit designed for compatible control dampers, smoke dampers, and fire/smoke dampers.
The SP100FK contains the components and hardware required to field-install an SP100 switch package. The assembly uses two damper position switches. One switch closes when the damper blades reach the fully open position, while the second closes when the blades reach the fully closed position.
This configuration provides remote blade-position indication and can interface with compatible remote control or fan stations.
The SP100FK uses SPDT microswitches rated for temperatures up to 302°F (150°C). Electrical ratings include:
15A at 125/250VAC
10A at 24VAC
1.5A at 24VDC
Confirm the damper model, mounting arrangement, wiring requirements, and application before installation.
Key Benefits
Field-installable Ruskin damper accessory
Includes brackets and mounting hardware
Provides indication of fully open and fully closed damper positions
Uses two damper position indicator switches
SPDT microswitch configuration
Temperature rating up to 302°F (150°C)
Designed for compatible control, smoke, and fire/smoke dampers
Supports compatible remote control and fan-station applications
Common Question
What does the Ruskin SP100FK position indicator switch do?
The SP100FK provides damper blade position feedback. One switch closes when the damper blades are fully open, while the other closes when the blades are fully closed, allowing the damper position to be remotely monitored.
Common Searches
What is a Ruskin SP100FK used for?
How does a damper position indicator switch work?
Does the Ruskin SP100FK include mounting hardware?
