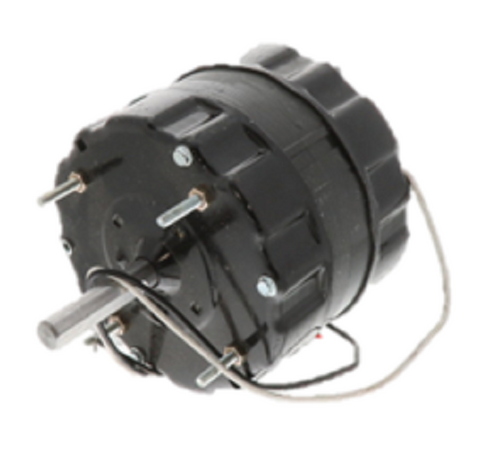

Sterling HVAC 11J31R03086 Motor

This 120V Sterling HVAC 11J31R03086 Motor is a high-performance, totally enclosed fan-cooled (TEFC) replacement built for demanding unit heater environments. As a standard 1/4 HP unit operating at 1075 RPM, this direct drive blower motor is engineered to withstand the dust and moisture intake common in commercial shops or industrial warehouses. The TEFC design is critical for long-term reliability, as it keeps environmental contaminants away from the internal windings, preventing the premature winding failure often seen with open drip-proof (ODP) alternatives.

When pulling a service call for a Sterling unit heater that won't initiate air movement or is tripping the high-limit switch, this OEM replacement fan motor ensures a drop-in fit for Unit Size 100 systems. It operates at 1.9 Amps on a 60Hz single-phase circuit. For veteran technicians, ensuring the rotation matches the existing fan blade is priority one; this motor is designed to maintain the consistent static pressure required for optimal heat exchange. Replacing a seized or humming 120V fan motor with the correct 11J31R03086 part number restores the airflow needed to clear the heat exchanger and maintain safe operating temperatures.

• TEFC Enclosure: Protects internal components from shop dust and moisture, reducing maintenance requirements.
• Reliable Heat Dissipation: Built-in fan cooling allows the motor to maintain lower operating temperatures under continuous use.
• OEM Compatibility: Precision-fit for Sterling unit heaters, ensuring correct shaft alignment and set screw placement.
• Optimized RPM: 1075 RPM rating provides the exact cubic feet per minute (CFM) necessary for industrial heating cycles.

Is this motor compatible with older Sterling unit heaters?
Yes, the 11J31R03086 is frequently used in Unit Size 100 models. Always verify the voltage (120V) and frame size against your existing motor's data plate before installation.

Should I replace the capacitor at the same time?
Technicians highly recommend installing a fresh run capacitor along with any new HVAC blower motor. A degraded capacitor is a primary cause of motor overheating and eventual stator failure.

Why choose a TEFC motor over an ODP model?
In environments like woodshops or garages, an ODP motor allows debris to enter the housing. This totally enclosed fan-cooled motor seals those components, significantly increasing the reliability of the system.
